WERO 雷电5 U.2/3硬盘盒WERO Thunderbolt 5 U.2/3 SSD Enclosure

产品参数

名称：WERO 雷电5 U.2/3硬盘盒
型号：1XU2-V80
主控：JHL9480
硬盘规格：7.0/9.5/15mm U.2/3  SSD，单盘支持122.88T
硬盘传输协议：PCIe4.0/3.0支持（⚠️不支持5.0的盘）
雷电上行口：接电脑，反向充电PD15W
雷电下行口：全功能雷电5口，支持接硬盘盒、扩展坞、显示器、手机等，PD充电15W
传输速度：80/40Gbps
数据线：WERO雷电5线，intel官方认证线，请勿更换成非官方认证线
             （⚠️注意：号称认证芯片的都是假认证线）！影响稳定性。
主动散热：2 个定速风扇（指风扇以固定转速运行，持续为硬盘盒内部散热）
尺寸：166毫米（长）× 89 毫米（宽）× 38毫米（高）
重量：600±5 克 (含线）
供电方式：独立电源，12v 4A，5521 DC口⚠️切勿使用超过12V的PD电源！
系统支持：MacOS（15.2或更高版本）、Windows 11（24H2 或更高版本）
速度测试工具：苹果Mac使用AmorphousDiskMark测试、Win10/11使用CrystalDiskMark 8.01测试，blackmagic disk speed test因测试标准不同，数值会低一些，望知晓！以上为顺序读取max值，其他数值可找客服索取.
Mac 系统兼容性：
雷电 5：最高可达 7000MB/s（每秒 7000 兆字节）
雷电 4：最高可达 3800MB/s（每秒 3800 兆字节）
雷电 3：最高可达 2800MB/s（每秒 2800 兆字节）
Windows 系统兼容性：
雷电 5：最高可达 6155MB/s（每秒 6155 兆字节）
雷电 4/USB4：最高可达 3800MB/s（每秒 3800 兆字节）
⚠️ 重要说明：
1、雷电5功能需在 Windows 11 24H2 或更高版本系统下才能稳定运行。
2、Win10的雷电4 电脑请更新到Win11 24H2或更高版本以获取最佳稳定性！
3、Windows电脑雷电3主控是JHL7540不能使用本产品的电脑多数可以通过到官方网站下载Thunerbolt固件更新来解决兼容问题，少数未提供固件更新的无解。
4、Windows电脑雷电3主控是JHL6540不能使用本产品的电脑大多数不支持，因为上线近 10 年了，多数电脑官方已无法提供固件更新
5、由于企业盘固件是针对服务器定制的，对民用环境缺少驱动或优化不够，请按产品详情页面兼容性实测来购买硬盘
6、不支持 USB3、USB2.0

SPECIFICATION

Product Name: WERO Thunderbolt 5 U.2/3 SSD Enclosure
Model: 1XU2-V80
Main Controller: JHL9480
SSD Specification: 7.0/9.5/15mm U.2/3 SSD; single-drive support up to 122.88TB
SSD Transfer Protocol: PCIe 4.0/3.0 supported (⚠️ PCIe 5.0 drives are not supported)
Thunderbolt Upstream Port: Connects to computers; supports PD 15W reverse charging
Thunderbolt Downstream Port: Full-function Thunderbolt 5 port, compatible with SSD enclosures, docking stations, monitors, mobile phones, etc.; supports PD 15W charging
Transfer Speed: 80/40 Gbps
Cable: WERO Thunderbolt 5 cable (Intel officially certified). Do not replace it with a non-officially certified cable (⚠️ Note: All cables claiming to have "certified chips" are fake certified cables)! This will affect stability.

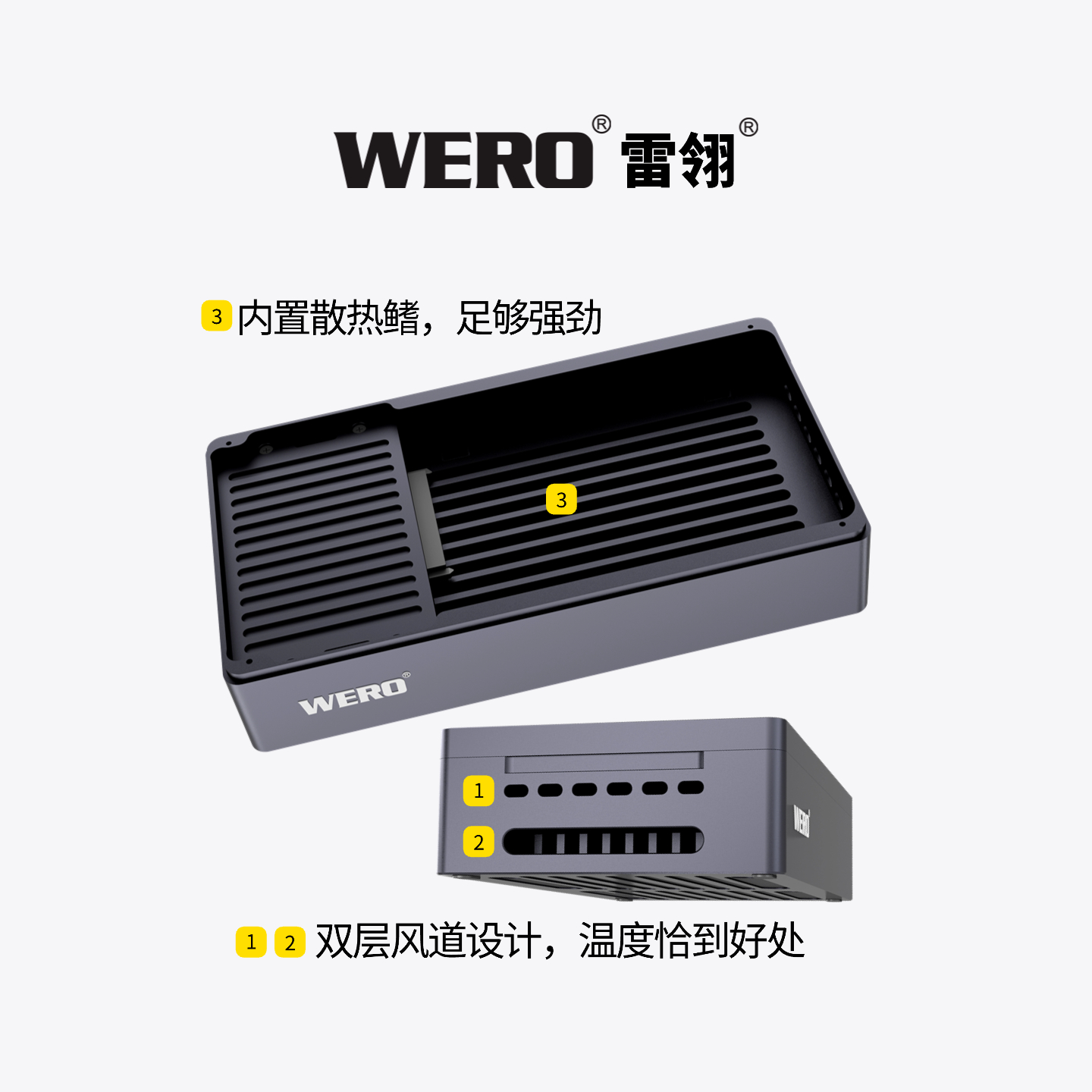

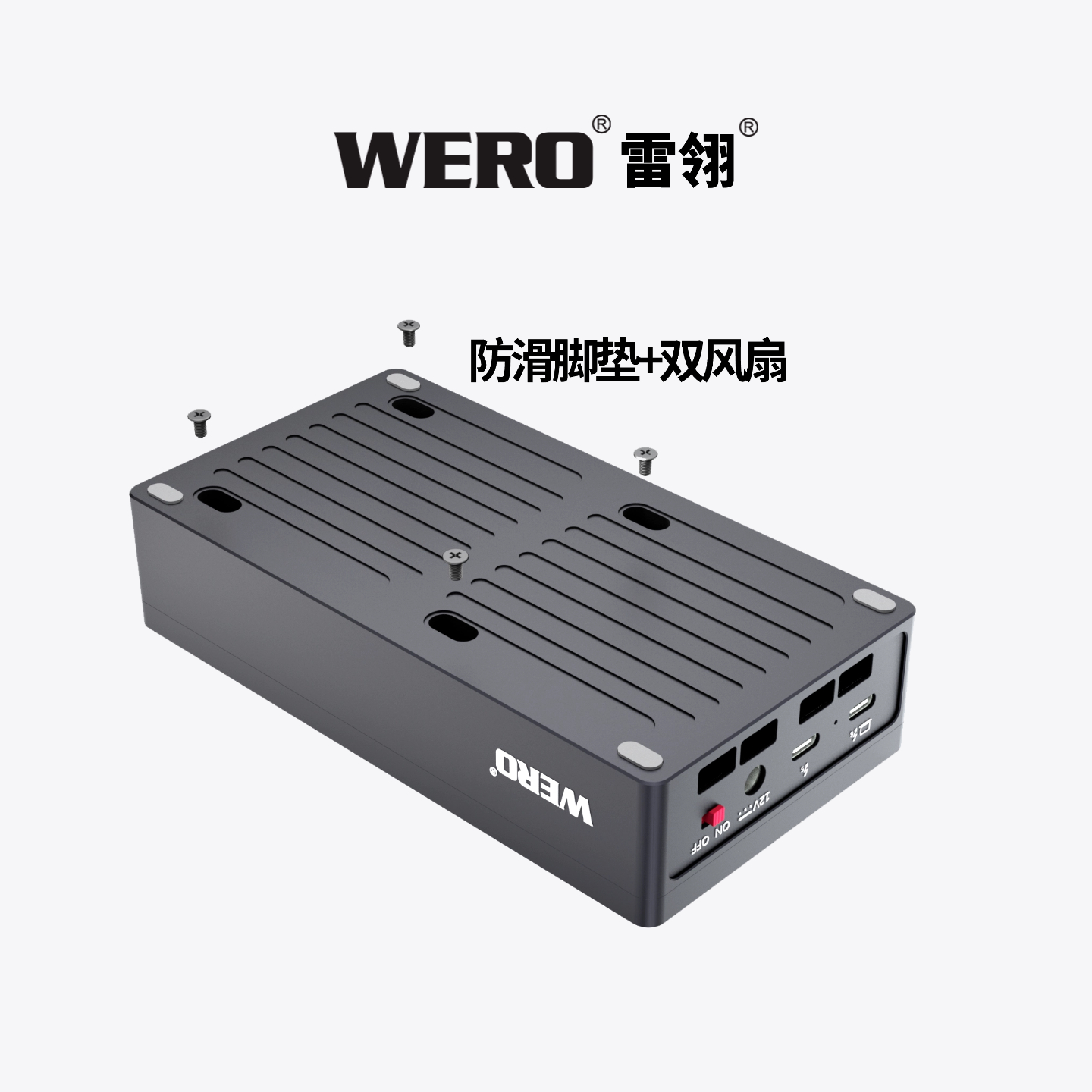

Active Cooling: 2 fixed-speed fans (fans operate at a constant speed to continuously dissipate heat inside the SSD enclosure). The fans can be disconnected!

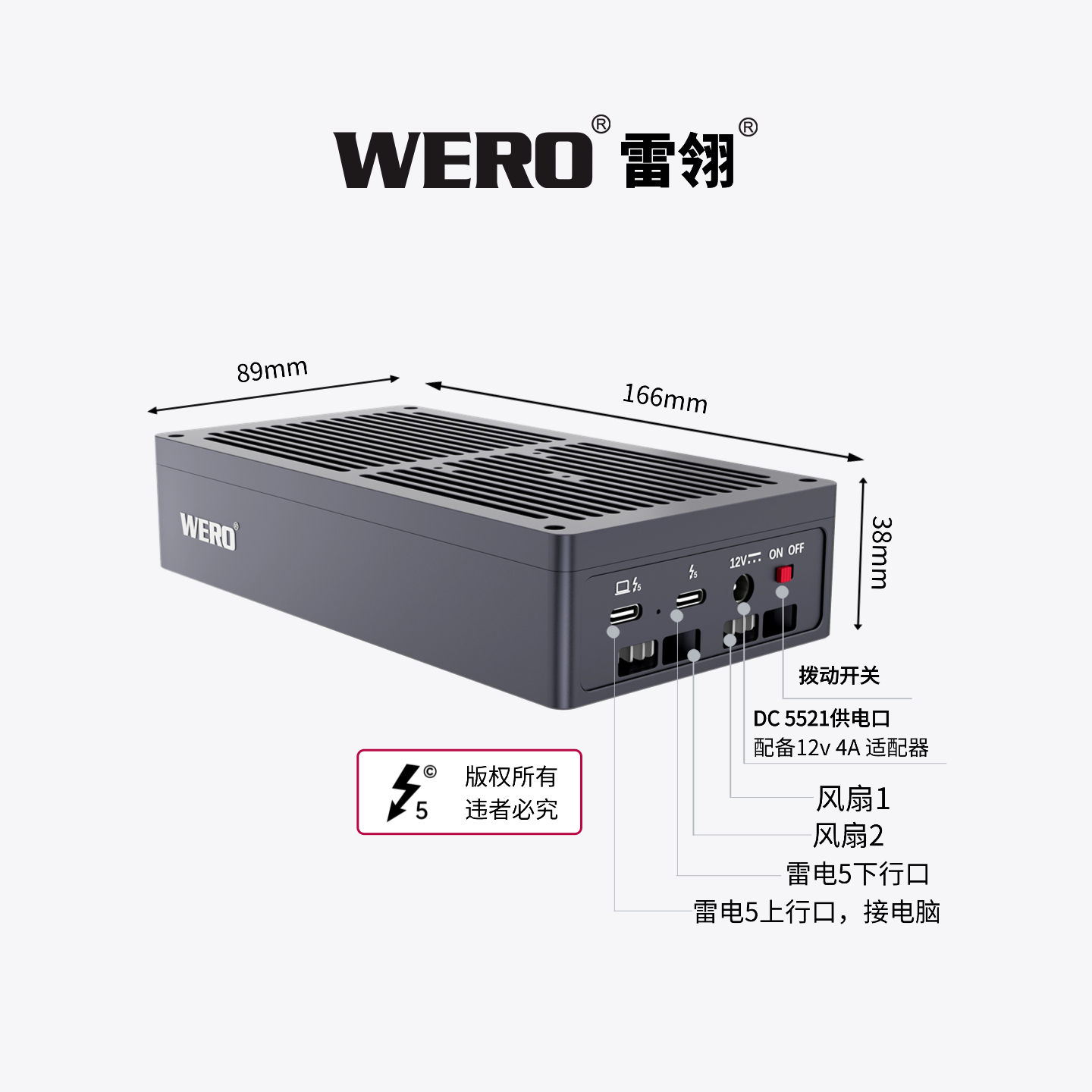

Dimensions: 166 mm (Length) × 89 mm (Width) × 38 mm (Height)
Weight: 600 ± 5 grams (including cable)
Power Supply Method: Independent power supply (12V 4A, 5521 DC port). ⚠️ Do not use power supplies with voltage exceeding 12V or PD variable voltage power supplies!
Supported Systems: macOS (Version 15.2 or later), Windows 11 (Version 24H2 or later)
Speed Testing Tools: For Apple Mac, use AmorphousDiskMark; for Windows 10/11, use CrystalDiskMark 8.01. Note that Blackmagic Disk Speed Test will show lower values due to different testing standards. Please be advised! The above speeds refer to the maximum sequential read speeds; other speed values can be obtained from customer service.
Compatibility & Speed on macOS
Thunderbolt 5: Up to 7000 MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Compatibility & Speed on Windows
Thunderbolt 5: Up to 6155 MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800 MB/s (3800 megabytes per second)
⚠️ Important Notes
1.Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
2.For Windows 10 Thunderbolt 4 PCs, update to Windows 11 24H2 or later for optimal stability.
3.For Windows PCs with Thunderbolt 3 JHL7540 controller (incompatible with this product): Most issues are fixable via official Thunderbolt firmware updates; a few devices with no updates remain incompatible (no solutions).
4.Most Windows PCs with Thunderbolt 3 JHL6540 controller don’t support this product—launched nearly 10 years ago, official firmware updates are unavailable for most.
5.Enterprise-grade drive firmware is customized for servers, and may lack drivers or have insufficient optimization for consumer environments. Please purchase drives based on the compatibility test results provided on the product details page.
6.USB 3 and USB 2.0 are not supported.
