规格参数
名称：WERO雷电5双模e1.s硬盘基座
型号：1xE1.s-V80
主控：JHL9480+JMS583

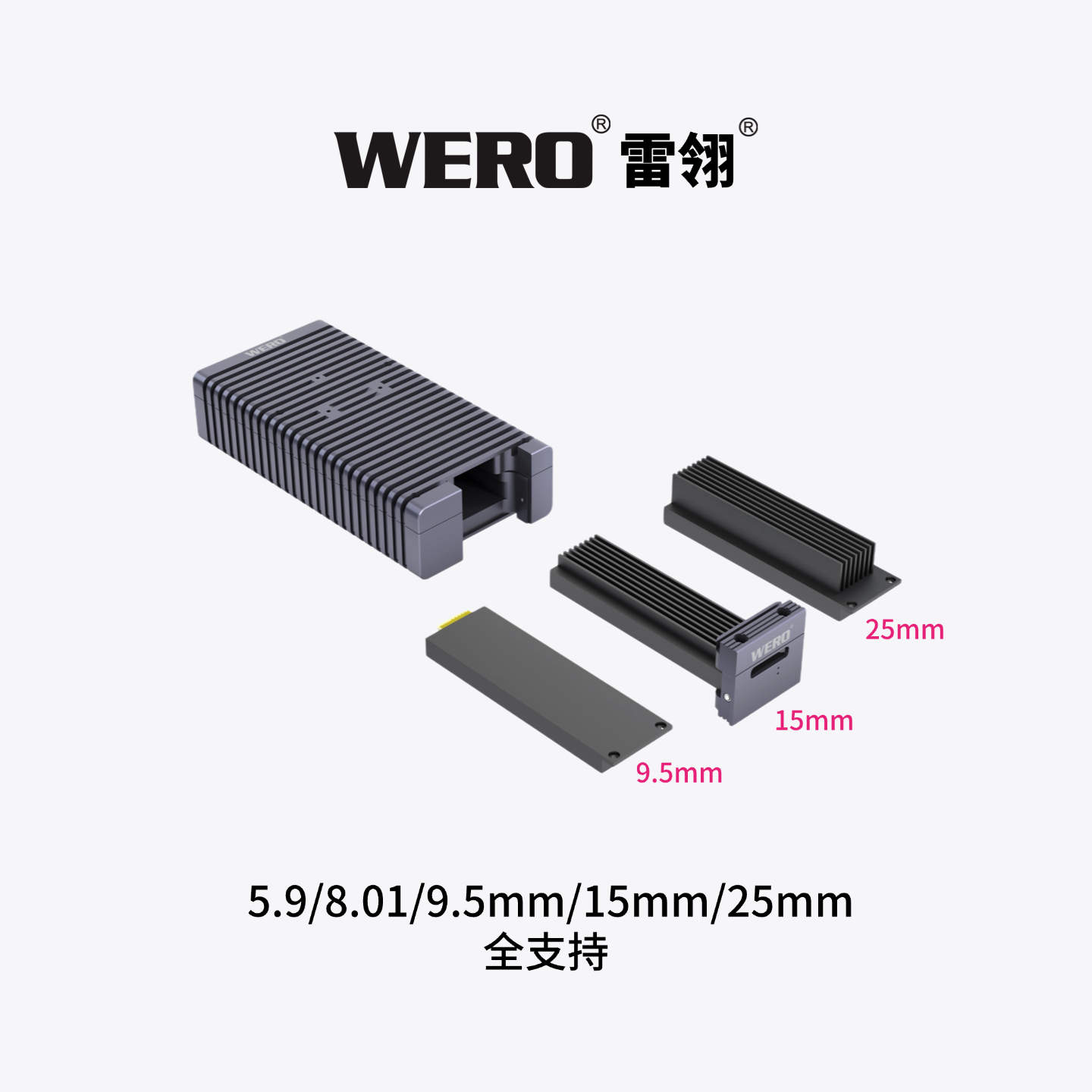

硬盘规格：9.5/15/25mm e1.s SSD，单盘支持122.88T或更大容量
硬盘传输协议：PCIe5.0/4.0/3.0支持（⚠️5.0的盘实际速率受限于雷电5端口带宽）
雷电上行口：接电脑，反向充电PD15W
雷电下行口：全功能雷电5口，支持接硬盘盒、扩展坞、显示器、手机等，PD充电15W
传输速度：80/40/10/5/0.48Gbps
数据线：WERO雷电5线，intel官方认证线，请勿更换成非官方认证线（⚠️注意：号称认证芯片的都是假认证线）！影响稳定性。
主动散热：温控风扇，通电自检满速转 5-10s后停止，45度以下不转，45度开始低速转，60度后全速转，中间随温度变化无级变速。

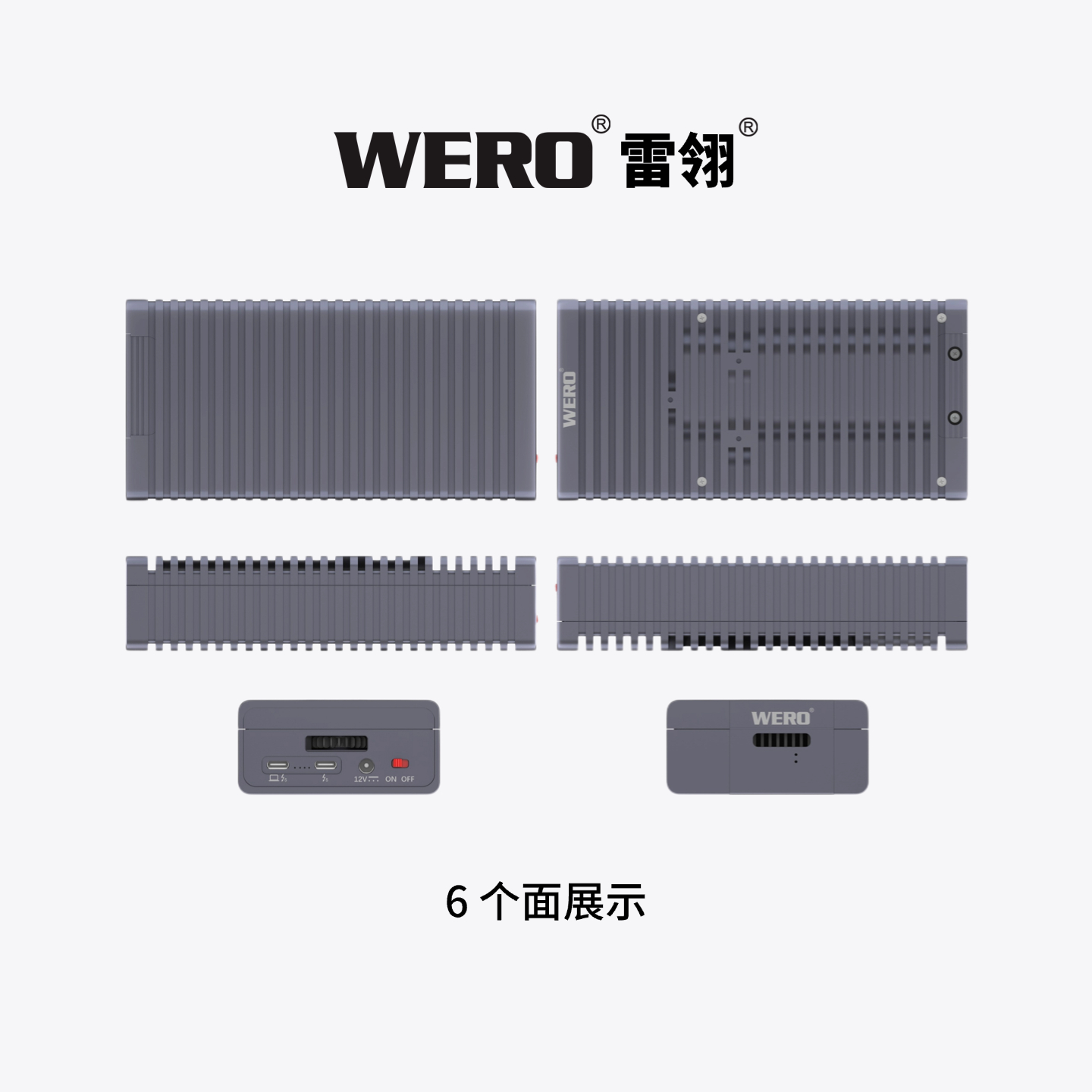

尺寸：168mm长 X 83mm宽 X 39mm高
重量：750±5 克
供电方式：独立电源，12v 4A，5521 DC口
系统支持：MacOS、Windows 10/11（ 不支持Windows8/7/XP 等）、Linux
iOS、Android 等
速度测试工具：苹果Mac使用AmorphousDiskMark测试、Win10/11使用CrystalDiskMark 8.01测试，blackmagic disk speed test因测试标准不同，数值会低一些，望知晓！以上为顺序读取max值，其他数值可找客服索取.
Mac上的速率：
雷电 5：可达 7000MB/s（每秒 7000 兆字节）
雷电 4：可达 3800MB/s（每秒 3800 兆字节）
雷电 3：可达 2800MB/s（每秒 2800 兆字节）
雷电 2：支持使用“雷雳 3 (USB-C) 转雷雳 2 转换器”，速度可达1300m/s
Windows上的速率：
雷电 5：可达 6155MB/s（每秒 6155 兆字节）
雷电 4/USB4：最高可达 3800MB/s（每秒 3800 兆字节）
雷电 3：可达 2750MB/s（每秒 2800 兆字节）
USB3.2 GEN2X2 20Gbps ：⚠️不支持20Gbps速率，速度只能到 1000M/s
USB3.2 GEN2 10Gbps: 1000M/s
USB3.2 GEN1 5Gbps: 450M/s
USB2.0 480Mbps: 38M/s
iPad/iPhone 速率:
iPad雷电4 口使用 disk test：读 1700M/s 写 1500M/s；
iPhone 17PM 使用 disk test：读 580M/s 写 400M/s
⚠️ 重要说明：
由于企业盘固件是针对服务器定制的，对民用环境缺少驱动或优化不够，请按产品详情页面兼容性实测来购买硬盘
SPECIFICATION
Name: WERO Thunderbolt 5 Dual-Mode e1.s SSD Enclosure
Model: 1xE1.s-V80
Controller: JHL9480 + JMS583
SSD Compatibility: 9.5/15/25mm e1.s SSD
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 compatible (⚠️ Actual speed of PCIe 5.0 drives is limited by Thunderbolt 5 port bandwidth)
Thunderbolt Upstream Port: Connects to computers; Supports 15W PD reverse charging
Thunderbolt Downstream Port: Full-featured Thunderbolt 5 port; Compatible with hard drive enclosures, docks, monitors, mobile phones, etc.; Supports 15W PD charging
Transfer Speed: 80/40/10/5/0.48Gbps
Cable: WERO Thunderbolt 5 cable (Intel officially certified). DO NOT replace with non-officially certified cables (⚠️ Note: Cables claiming to have certified chips are fake! This will affect stability.)
Active Cooling: Temperature-controlled fan. Runs at full speed for 5-10 seconds during power-on self-test (POST) then stops. Remains off below 45°C, starts low-speed rotation at 45°C, and switches to full-speed rotation above 60°C. Stepless speed adjustment based on temperature in between.
Dimensions: 168mm (L) × 83mm (W) × 39mm (H)
Weight: 750 ± 5 grams
Power Supply: Independent power adapter (12V 4A, 5521 DC port).
System Compatibility:MacOS, Windows 10/11 (Does not support Windows 8/7/XP, etc.)、Linux、iOS, Android, etc.
Speed Testing Tools
For Apple Mac: Use AmorphousDiskMark；For Windows 10/11: Use CrystalDiskMark 8.01
⚠️ Note: Blackmagic Disk Speed Test may show lower values due to different testing standards. The above speeds represent maximum sequential read speeds. For other values, please contact customer service.
Speed Performance On Mac
Thunderbolt 5: Up to 7000MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800MB/s (2800 megabytes per second)
Thunderbolt 2: Supported via “Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter”; Speed up to 1300MB/s
On Windows
Thunderbolt 5: Up to 6155MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2750MB/s (2750 megabytes per second)
USB3.2 GEN2X2 20Gbps: ⚠️ 20Gbps speed not supported; Maximum speed limited to 1000MB/s
USB3.2 GEN2 10Gbps: 1000MB/s
USB3.2 GEN1 5Gbps: 450MB/s
USB2.0 480Mbps: 38MB/s
On iPad/iPhone
iPad Thunderbolt 4 port (tested with Disk Test): Read 1700MB/s, Write 1500MB/s
iPhone 17 Pro Max (tested with Disk Test): Read 580MB/s, Write 400MB/s
⚠️ Important Notes
Enterprise SSD firmware is customized for server environments and may lack drivers or optimal performance for consumer use. Please refer to the compatibility test results on the product details page before purchasing hard drives.
