研发背景
设计这块扩展坞主要是考虑到很多苹果用户
规格参数：

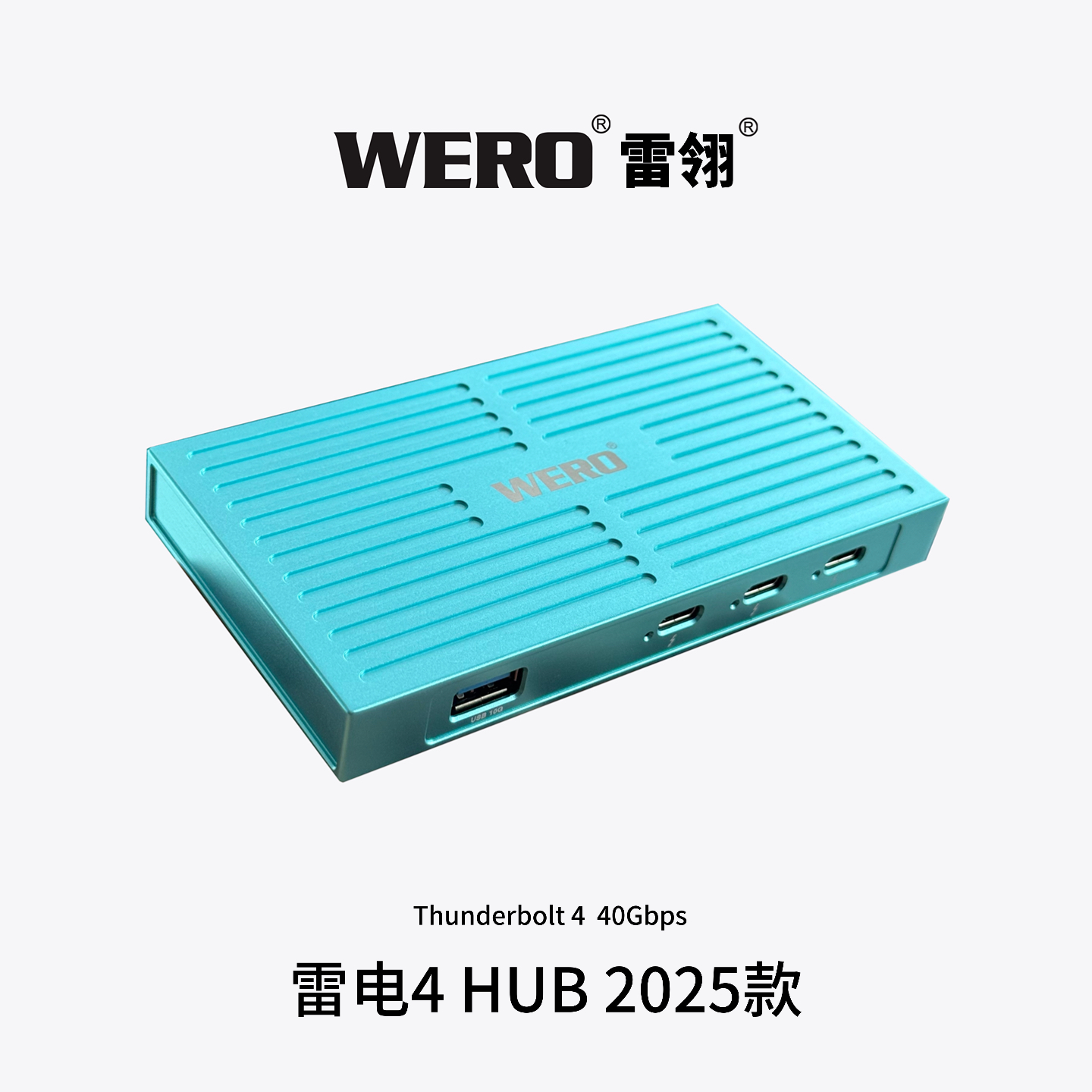

名称：雷电4 HUB 2025 款
型号：TBT4-HUB-2025
主控：JHL8440
USB-C接口：速率40Gbps

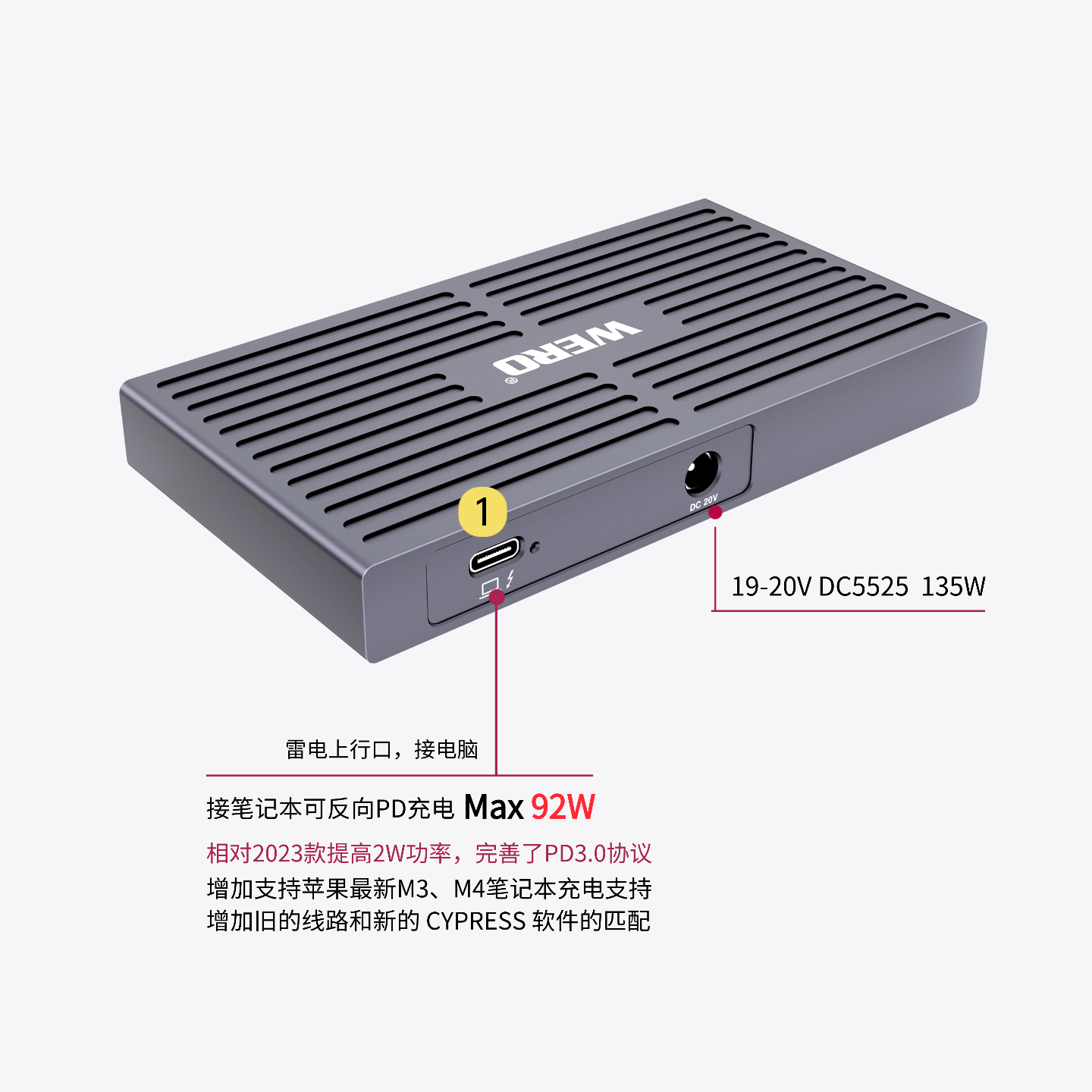

*上行雷电口：端口1，速率40Gbps, PD 92W

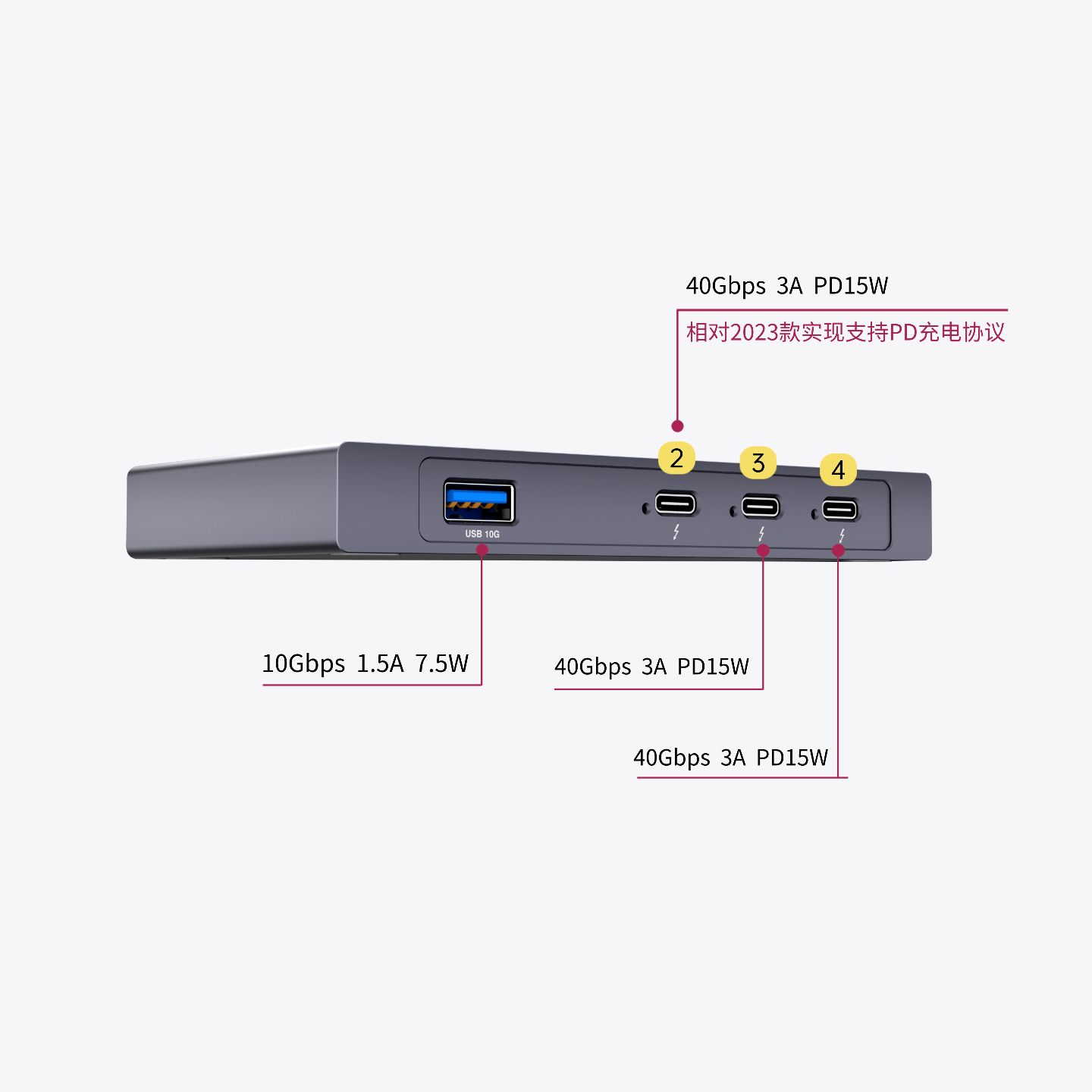

*下行雷电口：3个，图中标志2/3/4端口，速率40Gbps，PD均为15W,可接显示器、硬盘盒、扩展坞、手机、读卡器等
USB-A接口：请勿接鼠标键盘，同频干扰，可用USB2.0转接头后使用
*USB-A 3.2 GEN2 10Gbps端口：1个，PD 7.5W
数据线：WERO雷电4线，intel官方认证线，请勿更换成非官方认证线（⚠️注意：号称认证芯片的都是假认证线）！影响稳定性。
被动散热：无风扇，依靠全铝壳体散热
尺寸：132毫米（长）× 72 毫米（宽）× 17毫米（高）
重量：200±3 克
供电方式：19V 7.11A ,135W, DC接口5525，重量308g,主体体积138x66x22mm（同功率市面上zui轻的）,DC 5525接口电源
⚠️必须接电源！
系统支持：MacOS10.13 以上、Windows 10/11（ 不支持Windows8/7/XP 等）
⚠️ 重要说明：
1、高功耗，高性能的雷电产品，比如显卡坞、雷电阵列等，重型利器请务必直连电脑！超出负载会影响其他设备正常使用。
2、专为雷电4接口电脑设计，请必须确认自己电脑是雷电4接口，雷电3 windows笔记本、台式机用户不适用，请勿尝试！
3、雷电3用户请购买本店其他雷电3扩展坞

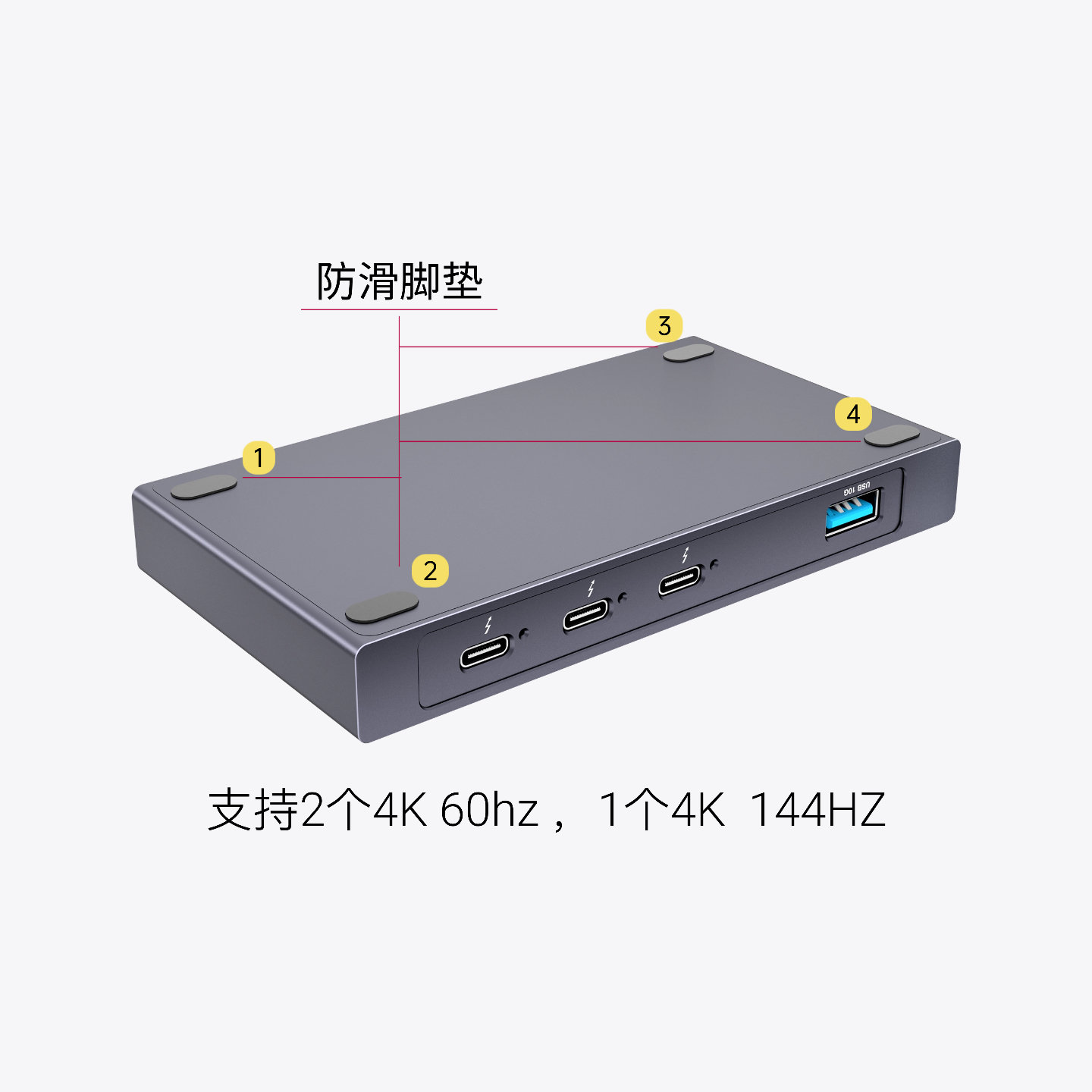

4、下行口接显示器苹果最多2个,Win最多3个,受限于电脑端支持的数量
SPECIFICATION
Name: Thunderbolt 4 HUB 2025
Model: TBT4-HUB-2025
Main Controller: JHL8440
USB-C Interfaces: Speed 40Gbps
Upstream Thunderbolt Port: Port 1, Speed 40Gbps, 90W PD
Downstream Thunderbolt Ports: 3 ports (marked as Ports 2/3/4 in the diagram), Speed 40Gbps, PD outputs: 15W respectively，
Compatible with monitors, ssd enclosures, docks, mobile phones, card readers, etc.
USB-A Interfaces: Do not connect mice or keyboards (risk of same-frequency interference); use a USB 2.0 adapter if needed
USB-A 3.2 GEN2 (10Gbps) Port: 1 port, 7.5W PD
Cable: WERO Thunderbolt 4 cable (Intel officially certified). Do not replace with non-officially certified cables (⚠️ Note: Cables claiming to have “certified chips” are all fake certified cables)! This will affect stability.
Passive Cooling: Fanless design, relying on full-aluminum casing for heat dissipation
Dimensions: 132mm (Length) × 72mm (Width) × 17mm (Height)
Weight: 200 ± 3 grams
Power Supply Method: Standard 135W power supply (19V 7.11A, DC 5525 interface) ⚠️ Must connect to a power supply!
Supported Systems: macOS 10.13 or later, Windows 10/11 (Does not support Windows 8/7/XP, etc.)
⚠️ Important Notes
1、For high-power-consumption, high-performance Thunderbolt devices (e.g., eGPU docks, Thunderbolt arrays), please connect these heavy-duty devices directly to the computer! Exceeding the load will affect the normal operation of other connected devices.
2、This product is specifically designed for computers with Thunderbolt 4 ports. Please confirm your computer has a Thunderbolt 4 port first. It is NOT compatible with Windows laptops or desktops with Thunderbolt 3 ports—do not attempt to use it with such devices!
3、Customers with Thunderbolt 3 devices please purchase other Thunderbolt 3 docks available in our store.
4、When connecting monitors to the downstream ports: a maximum of 2 monitors is supported for Apple devices, and a maximum of 3 monitors for Windows devices. The number is limited by the support capacity of the computer itself.
