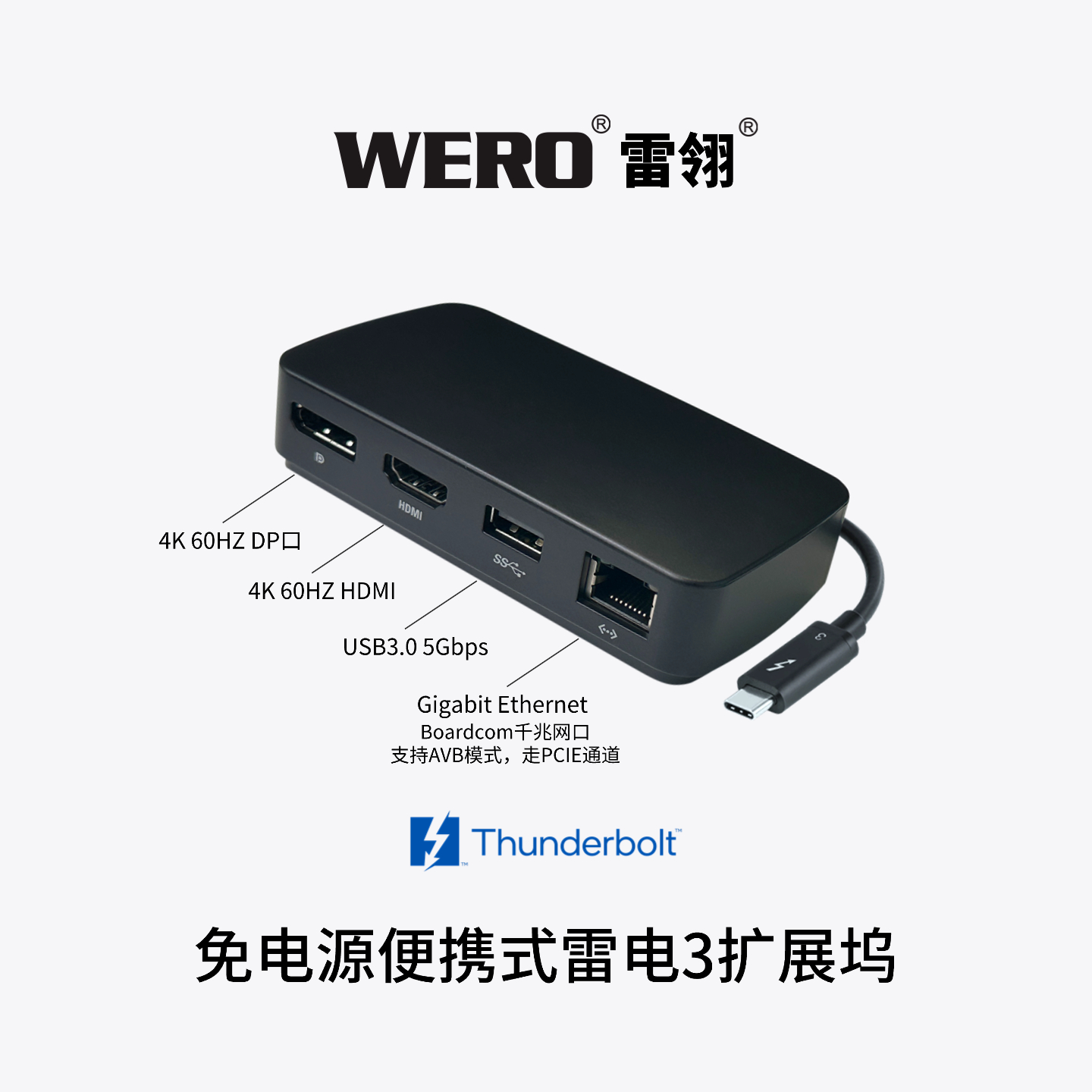

WERO TBT3 Travel Dock便携式免电源雷电3扩展坞

| 產品內容



OVERVIEW

    • This specification defines the requirement and behavior of Lintes Thunderbolt 3 to DP, HDMI, Ethernet and USB 3.1 GEN1 Dongle. The cable connect to host systems or devices’ Thunderbolt 3 connector and transform Thunderbolt signal to DP, HDMI, Ethernet and USB 3.1 GEN 1 signal for applications. This document specifies the electrical and mechanical properties of Lintes Thunderbolt 3 to DP, HDMI, Ethernet and USB 3.1 GEN 1 Dongle.
    • Thunderbolt 3 Host to Thunderbolt Gen 2 Device.



FEATURES

    • An electrical cable that transform Thunderbolt 3 signal to DP, HDMI, Ethernet and USB 3.1 GEN 1 signal in order to provide great responsiveness with data and a easy turn-key solution for Thunderbolt applications and devices
    • Can only be used for last Thunderbolt end-point devices in a daisy-chain link
    • Tether design is optimized with respect to providing tethers with high flexibility, good durability, natural buoyancy and minimum drag.

| 產品規格

General Specification
    • Cable total Length: 24cm.
    • Outside diameter: 4.2mm.

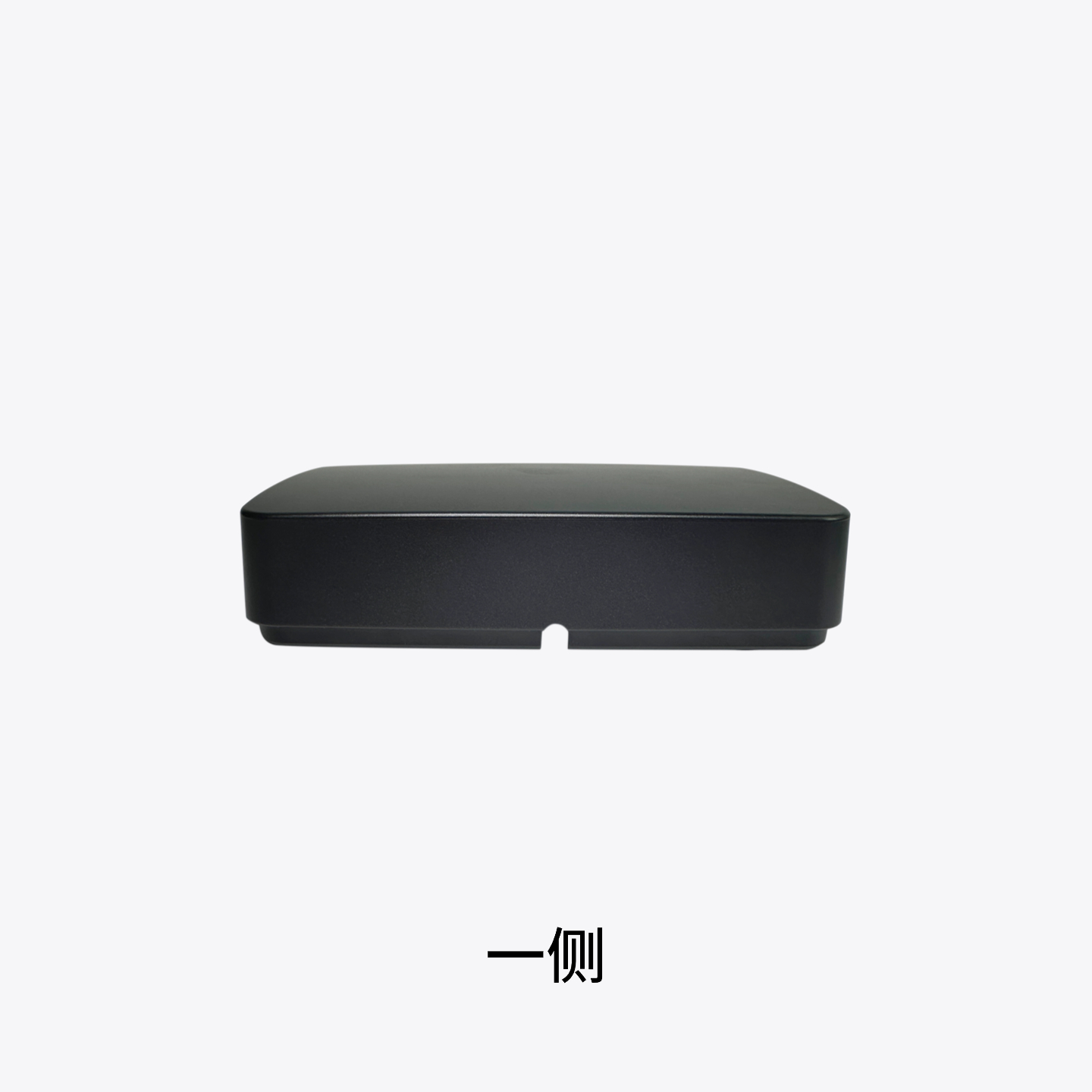

    • Product height: 25.5mm, Length:105mm, Width: 57mm.

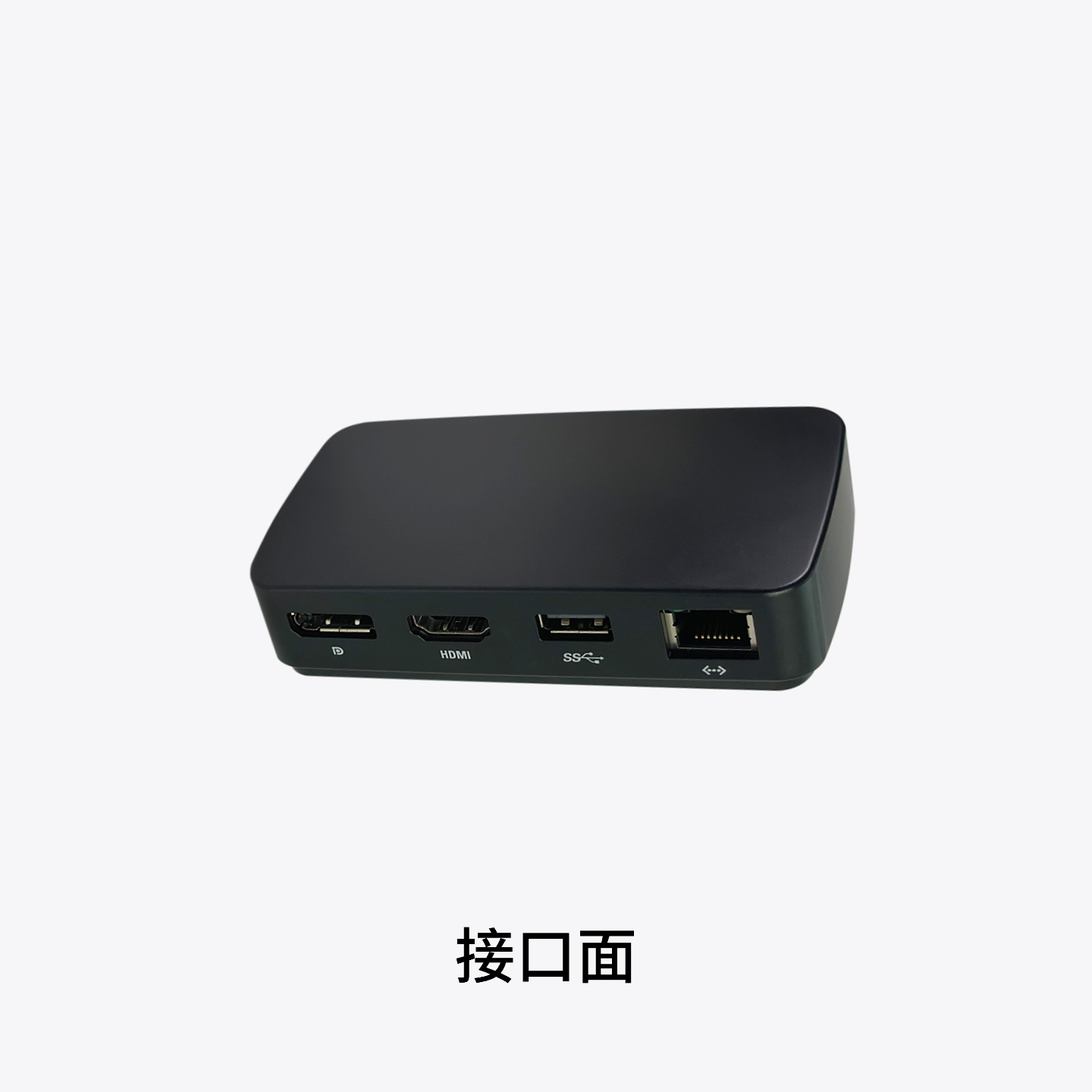

    • Connector: Lotes USB 3.0 connector & HDMI receptacle& DP receptacle, Rego RJ45 receptacle.
Type- C Thunderbolt3 Electrical Specification
    • Operating Voltages:VBUS: 5V.
    • Support Thunderbolt 3 operation.
    • Transmission data rate: TBT3 side: 40Gbps.
    • Max Power Consumption:13.5W.
    • Current Delivery Capacity: 3A (max.) @ VBUS=5V.
USB 3.1 GEN 1 Electrical Specification
    • USB power : 5V/ 1.1A.
    • USB 3.0: 1.5/12/480/5000 Mbps.
    • Support USB 1.1, 2.0, 3.1 GEN1device.
    • Support Wake-On-USB.
DP1.2 Electrical Specification
    • DP power: 3.3V/0.5A.
    • Support DP1.2 (4K 4096X2160 60Hz).
    • Support dual 4K displays with HDMI port.
HDMI 2.0 Electrical Specification
    • HDMI Power: 5V.
    • Support HDMI 2.0(4K 4096X2160 60Hz).
    • Support dual 4K displays with DP port.
    • Support HDCP 2.2 repeater with on-chip keys.
    • Support EDID reading.
Ethernet Electrical Specification
    • Support Ethernet 1Gbps.
    • Support Wake-on-LAN(WOL).
Storage and Operation temperature
    • Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
    • Operation Temperature: Intel Thunderbolt Standard 0°C ~40°C ambient.
