产品参数
名称:雷电3 Pcie扩展坞
型号: TBT3-PCIe
主控:JHL7440
协议:Pcie3.0x4
USB-C接口:速率40Gbps
*上行雷电口:速率40Gbps, PD 15W,接电脑
*下行雷电口:速率40Gbps,PD 15W,全功能接口
可接显示器、硬盘盒、扩展坞、手机、读卡器等

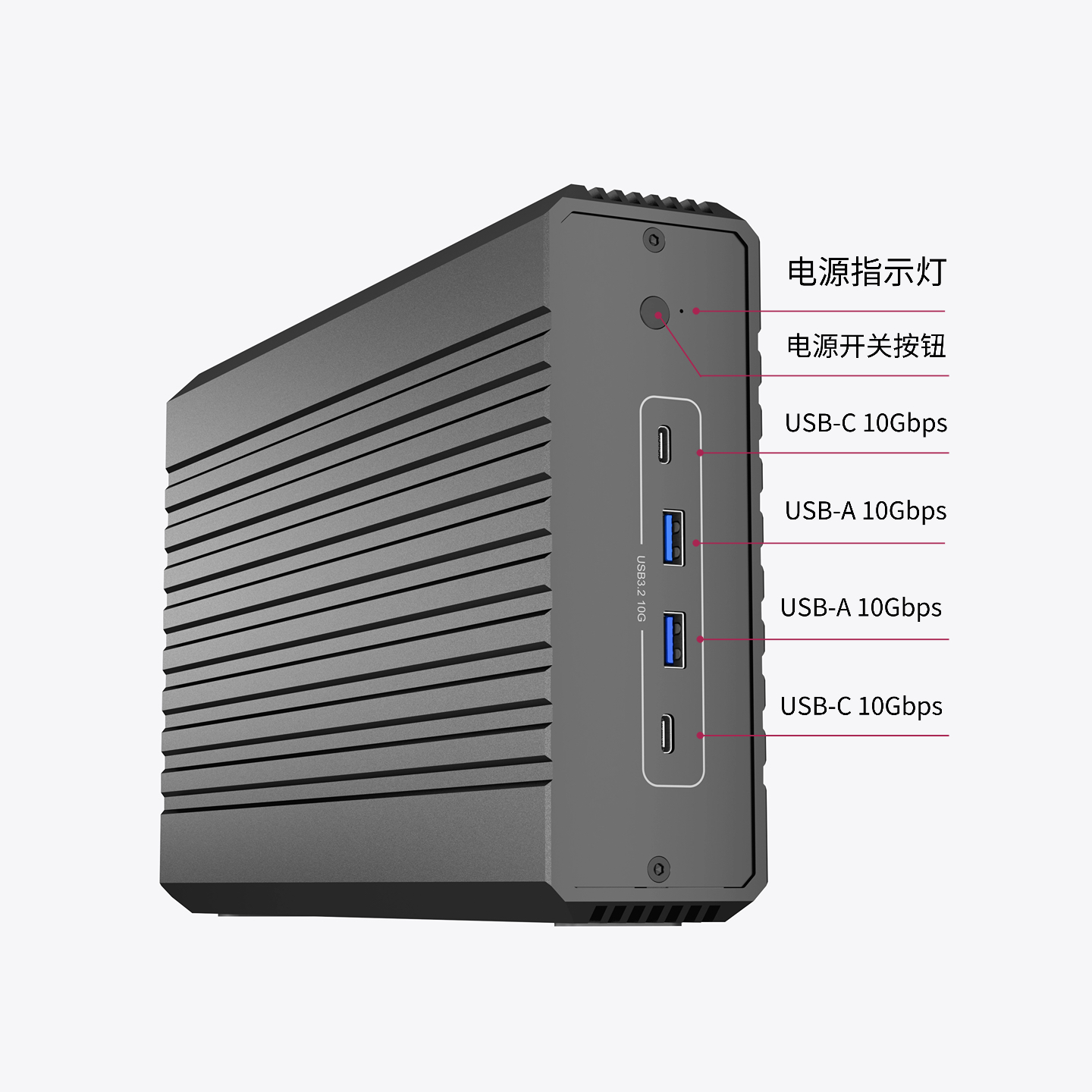

前面板接口:
USB-C 3.2 GEN2 10Gbps端口:2个,PD 7.5W USB-A 3.2 GEN2 10Gbps端口:2个,PD 7.5W

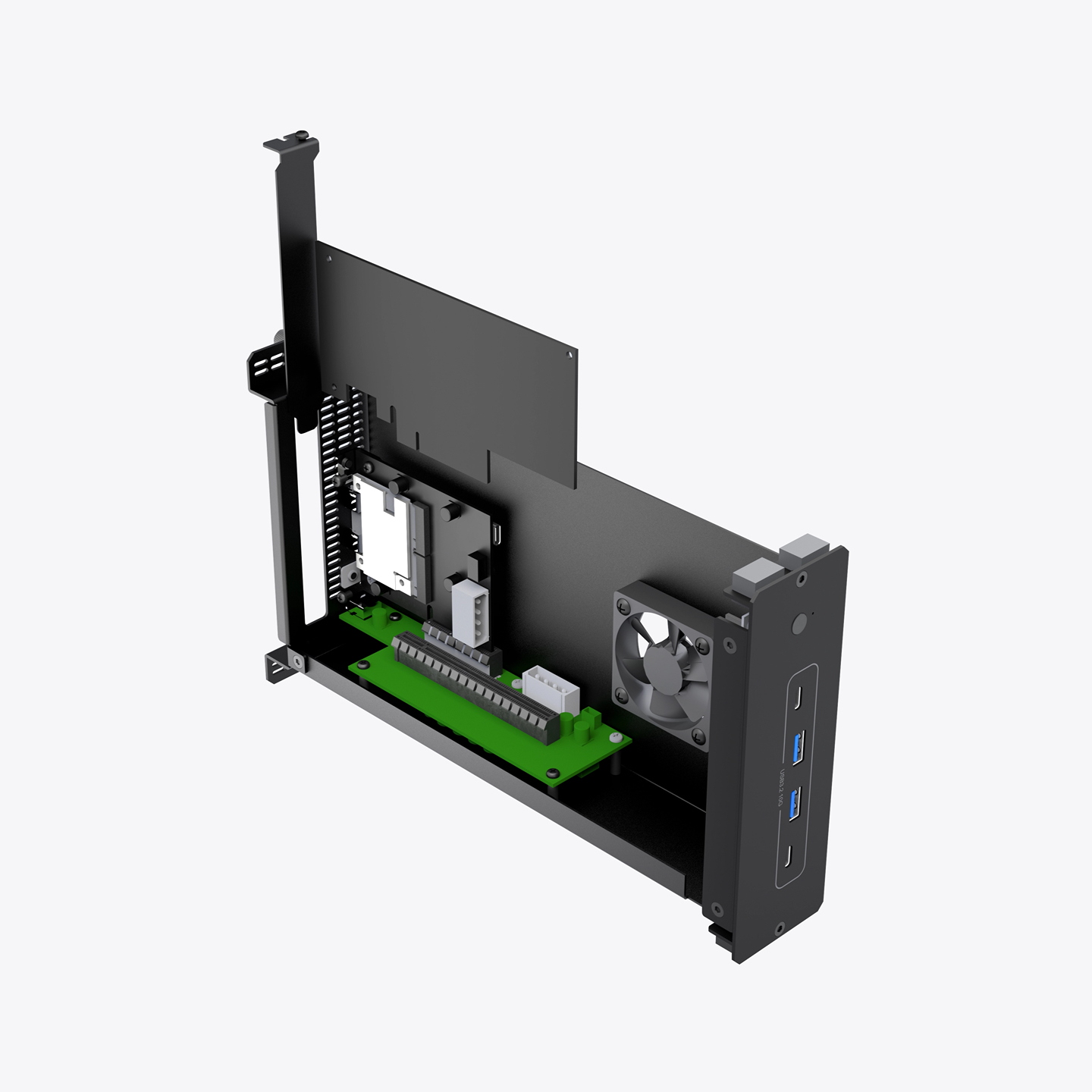

PCIe插槽:1个,支持各种长度的PCIe3.0板卡:X1,X4,X8,X16(显卡除外)全高,⚠️尺码不大于:长224cm,厚2.4cm,比如:NVME转接卡,USB3.1/eSATA/miniSAS转接卡,万兆网卡,声卡,视频采集卡等
PCie插槽最大供电:12V 6A ,72W
数据线:WERO雷电3线,intel官方认证线,请勿更换成非官方认证线⚠️注意:号称认证芯片的都是假认证线!影响稳定性。
⚠️支持5-50米WERO雷电3 AOC光纤数据线远距离无损连接
主动散热:定速风扇(固定转速运行,持续为硬盘盒内部散热)

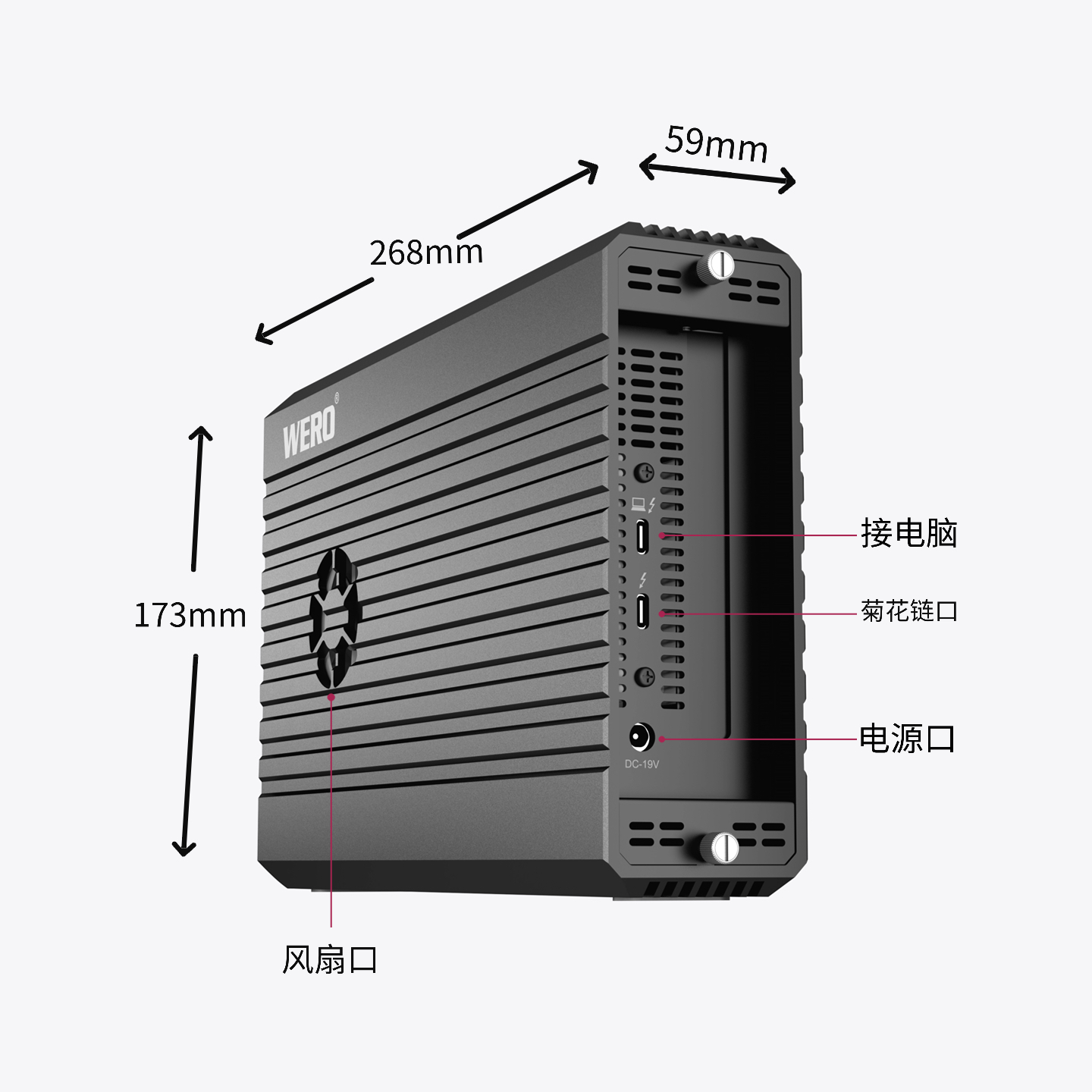

尺寸:268毫米(长)× 173 毫米(宽)× 59毫米(高)
重量:1850克
供电方式:独立电源,输入AC 100-240V 输出19V 7.11A 135W.
系统支持:MacOS10.13 以上、Windows 10/11( 不支持Windows8/7/XP 等)
⚠️ 重要说明:
1、 雷电 3 扩展坞不兼容 USB3、2 接口的设备
2、该设备必须使用 19.5V独立电源(超过 20V会烧毁)
SPECIFICATION
Name: Thunderbolt 3 PCIe Dock
Model: TBT3-PCIe
Main Controller: JHL7440
Protocol: PCIe 3.0 x4
USB-C Interfaces: Speed 40Gbps
Upstream Thunderbolt Port: Speed 40Gbps, 15W PD; connects to a computer
Downstream Thunderbolt Port: Speed 40Gbps, 15W PD; full-featured interface, compatible with monitors, SSD enclosures, docks, mobile phones, card readers, etc.
Front Panel Interfaces:
USB-C 3.2 GEN2 (10Gbps) Ports: 2 ports, 7.5W PD each
USB-A 3.2 GEN2 (10Gbps) Ports: 2 ports, 7.5W PD each
PCIe Slot: 1 slot, supports PCIe 3.0 cards of various lengths (X1, X4, X8, X16; excluding graphics cards), full-height
⚠️ Maximum dimensions of compatible cards: Length ≤ 224mm, Thickness ≤ 2.4mm,Examples of compatible cards: NVMe adapter cards, USB3.1/eSATA/miniSAS adapter cards, 10GbE network cards, sound cards, video capture cards, etc.
Maximum power supply for PCIe slot: 12V 6A (72W)
Cable: WERO Thunderbolt 3 cable (Intel officially certified). Do not replace with non-officially certified cables.
⚠️ Note: Cables claiming to have “certified chips” are all fake certified cables! This will affect stability.
⚠️ Supports lossless long-distance connection with WERO Thunderbolt 3 AOC fiber optic cables (5-50 meters)
Active Cooling: Fixed-speed fan (operates at a constant speed to continuously cool the interior of the dock) – removable!
Dimensions: 268mm (Length) × 173mm (Width) × 59mm (Height)
Weight: 1850 grams
Power Supply Method: Independent power supply; Input: AC 100-240V, Output: 19V 7.11A (135W)
Supported Systems: macOS 10.13 or later, Windows 10/11 (Does not support Windows 8/7/XP, etc.)
⚠️ Important Notes
1.The Thunderbolt 3 Dock is not compatible with devices that have USB 3 or USB 2 interfaces.
2.This device must use a 19.5V independent power supply (any voltage exceeding 20V will cause the device to burn out, and such damage is not covered under warranty).
