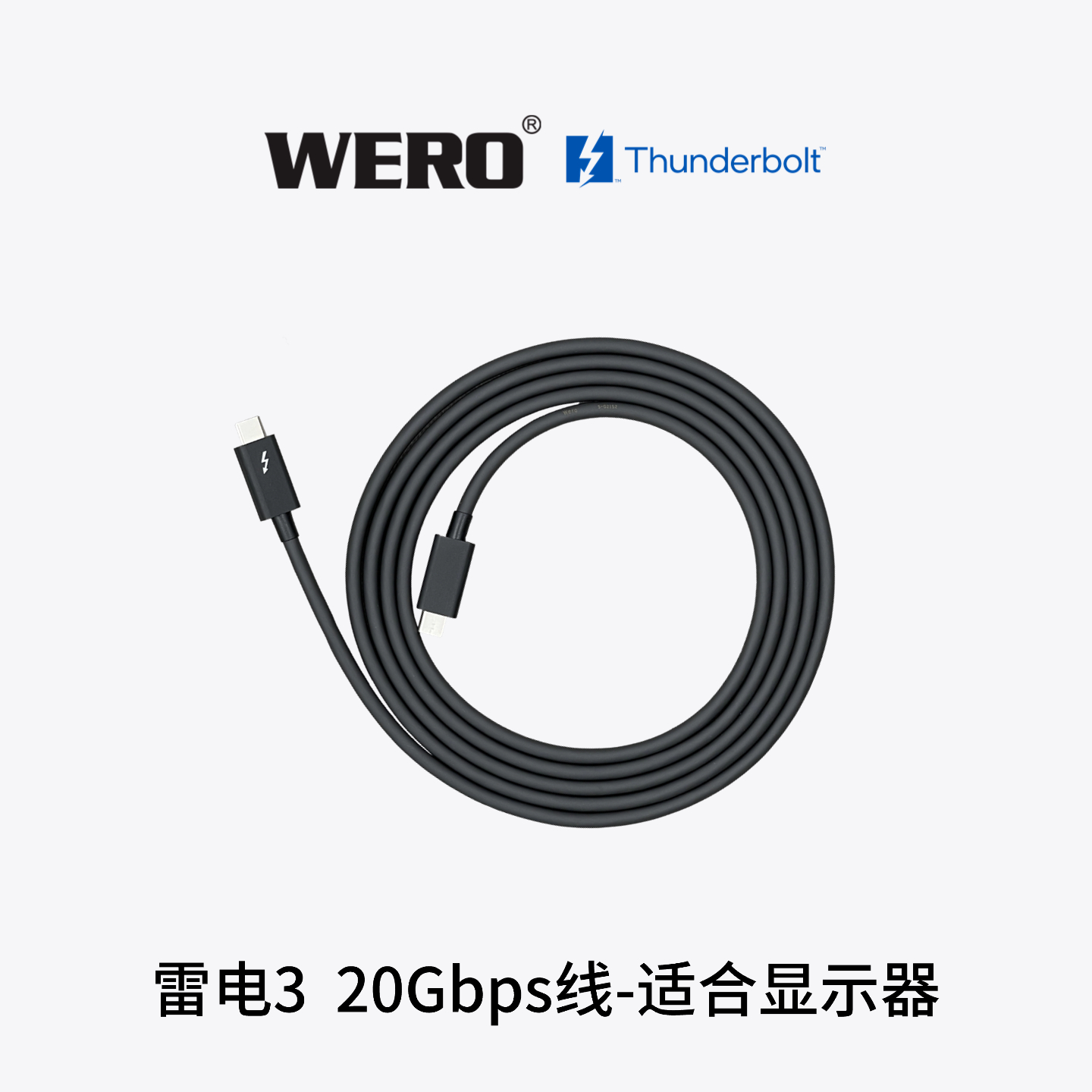

WERO Thunderbolt3 (20Gbps) passive cable Pro 1.0M, 2.0M

比较适合各种带c口和反向充电的4k显示器,一方面可以实现视频传输,另外一方面可以通过显示器对您的笔记本实现最大100w的供电

雷电显示器推荐购买40Gbps的线材,这种比较适合普通type-c口的显示器。

| 產品內容

  • Passive high bandwidth cable with E-Marker function
  • Supports 2-CH TBT Gen2 or TBT Gen3 full duplex high speed transmission
  • Supports 1-CH USB3.1 Gen1 or Gen2 full duplex high speed transmission
  • Supports 1-CH USB2.0 half duplex transmission
  • Support 4-lane DisplayPort video signal transmission, DP alternate mode
  • Dual-protocol support for TBT mode (PCI Express and DisplayPort) and can be used for daisy-chaining devices
  • Plug flip-able use
  • Thin cable design, OD=4.7mm
  • Compliant with USB Power Delivery Specification Rev2.0. Maximum power delivery capacity up to 5A

| 產品規格

General Specification
  • Length:  2-meter
  • Connector: LOTES Type-C connector or compatible
  • Color: Black
Electrical Specification
  • Transmission data rate: TBT: 2-CH TBT Gen2 full duplex operation.USB: 1-CH USB2.0 half duplex operation, 1-CH USB3.1 Gen1 or Gen2* full duplex operation.
  • Operating Voltages: VBUS: 5V – 20V (typ.), VCONN: 5V (typ.)
  • Power consumption: under 20mW.
  • Current delivery capacity: 5A (max.)
  • Compliant with USB Power Delivery; Specification Rev2.0;
Storage and Operation temperature
  • Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
  • Operation Temperature: Intel Thunderbolt Standard 0~50°C ambient.

* : USB3.1 Gen2 (10Gbps/ch) data rate is for 1m length model only

intel雷电官网认证链接:https://www.thunderbolttechnology.net/product/wero-thunderbolt3-20gbps-passive-cable-pro-10m-20m
