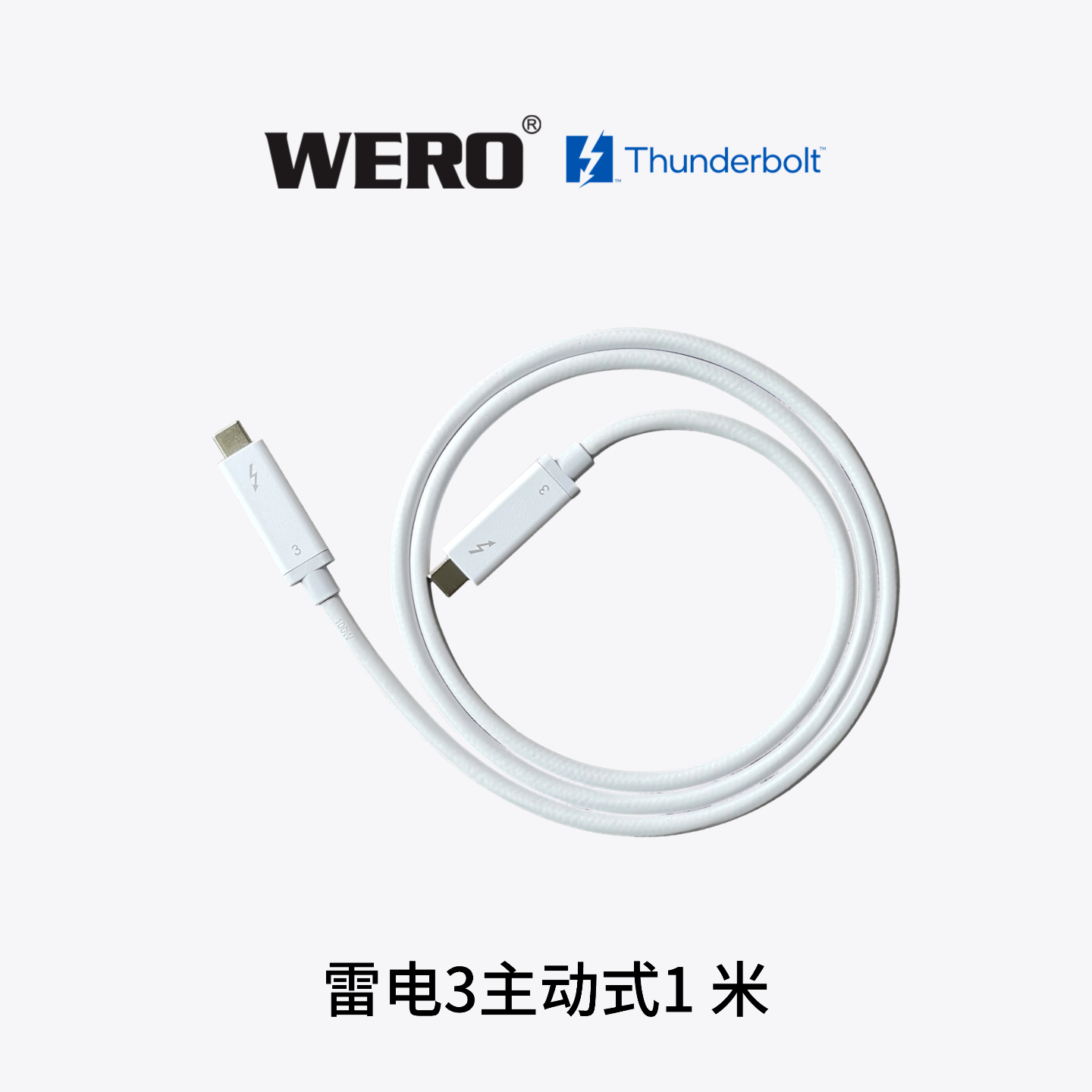

主动式雷电3不兼容USB3,兼容USB2.0，只能用在2头都是雷电接口的设备之间
| 產品內容
- Active high data rate cable with clock & data recovery chip inside
- Supports 2-CH TBT Gen2 or TBT Gen3 full duplex high speed transmission
- Supports 1-CH passive USB2 channel transmission
- Dual-protocol support for TBT mode (PCI Express and DisplayPort*) and can be used for Thunderbolt daisy-chaining devices
- Plug flip-able use
- Thin cable design, OD=4.8mm(typ.)
- Compliant with USB Power Delivery Specification Rev2.0. Maximum power delivery capacity up to 5A
| 產品規格
General Specification
- Length: 1.0-meter
- Connector: LOTES Type-C connector or compatible
- Color: Black/ White
Electrical Specification
- Transmission data rate: TBT:2-channel TBT Gen2 or TBT Gen3 full duplex operation.USB: 1-channel USB2.0 half duplex operation.
- Operating Voltages: VBUS: 5V – 20V (typ.), VCONN: 5V (typ.)
- Power consumption:1.5W (typ.)
- Current delivery capacity: 5A (max.)
- Compliant with USB Power Delivery Specification Rev2.0
Storage and Operation temperature
- Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
- Operation Temperature: Intel Thunderbolt Standard 0~50°C ambient.
* :Active TBT3 cable doesn’t support native DP alternate mode and USB3.1 Gen1 & Gen2 mode
intel雷电官网认证链接：https://www.thunderbolttechnology.net/product/wero-thunderbolt-3-40gbps-active-cable-elite-10m-white
