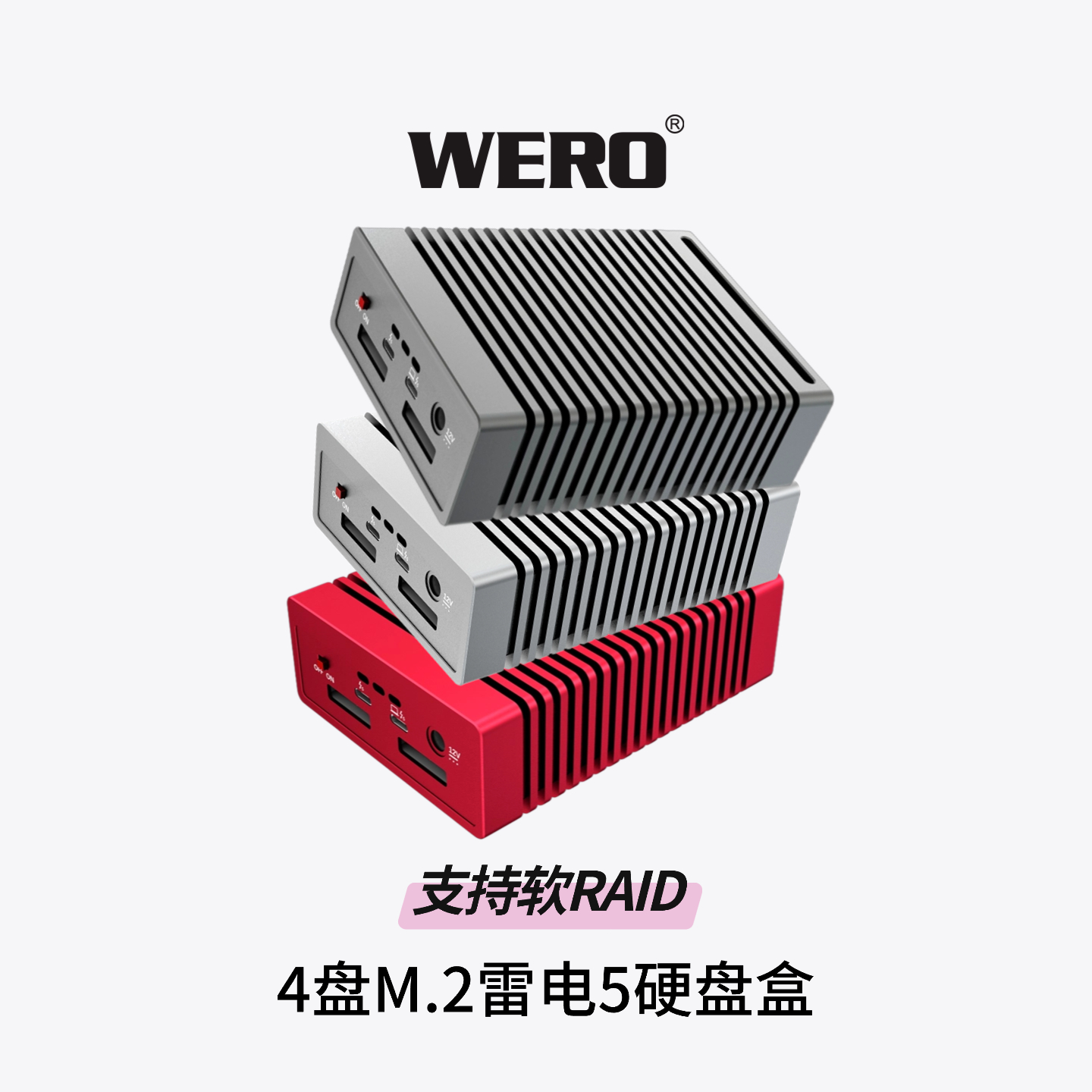

WERO雷电5 4盘位M.2 硬盘盒Thunderbolt 5 4-Bay M.2 SSD Enclosure

规格参数

名称：雷电5 4盘位M.2 硬盘盒
型号：4XM2-V80
主控：JHL9480-B2+PCIe4.0x4 HUB
硬盘规格：2280 规格的M.2 NVMe M.key SSD(⚠️不要带马甲）
硬盘传输协议：PCIe5.0/4.0/3.0支持⚠️5.0的盘实际速率受限于雷电5端口带宽
雷电上行口：反向充电PD15W
雷电下行口：全功能雷电5口，支持接硬盘盒、扩展坞、显示器、手机等，PD充电15W
传输速度：80/40Gbps
数据线：WERO雷电5线，intel官方认证线，请勿更换成非官方认证线（⚠️注意：号称认证芯片的都是假认证线）！影响稳定性。
主动散热：4 个温控风扇，4分区独立风扇，通电自检满速转 5-10s后停止，45度以下不转，45度开始低速转，60度后全速转，中间随温度变化无级变速！
尺寸：136.6毫米（长）× 103.6 毫米（宽）× 43.6毫米（高）
重量：747±5 克 (含线）
供电方式：独立电源，12v 5A或6A，⚠️切勿使用超过12V和PD可变电压电源！
系统支持：MacOS（15.2或更高版本）、Windows 11（24H2 或更高版本）
速度测试工具：苹果Mac使用AmorphousDiskMark测试、Win10/11使用CrystalDiskMark 8.01测试，blackmagic disk speed test因测试标准不同，数值会低一些，望知晓！以上为顺序读取max值，其他数值可找客服索取.
Mac 系统兼容性：
雷电 5：最高可达 7000MB/s（每秒 7000 兆字节）
雷电 4：最高可达 3800MB/s（每秒 3800 兆字节）
雷电 3：最高可达 2800MB/s（每秒 2800 兆字节）
Windows 系统兼容性：
雷电 5：最高可达 6155MB/s（每秒 6155 兆字节）
雷电 4/USB4：最高可达 3800MB/s（每秒 3800 兆字节）
⚠️ 重要说明：
1、雷电5功能需在 Windows 11 24H2 或更高版本系统下才能稳定运行。
2、Win10的雷电4 电脑，请更新到 Windows 11 24H2或更高版本，以获取最佳稳定性！
3、Windows电脑雷电3主控是JHL7540不能使用本产品的电脑多数可以通过到官方网站下载Thunerbolt固件更新来解决兼容问题，少数未提供固件更新的无解。
4、Windows电脑雷电3主控是JHL6540不能使用本产品的电脑大多数不支持，因为上线近 10 年了，多数电脑官方已无法提供固件更新

SPECIFICATION

Product Name: Thunderbolt 5 4-Bay M.2 SSD Enclosure
Model: 4XM2-V80
Main Controller: JHL9480-B2 + PCIe 4.0x4 HUB

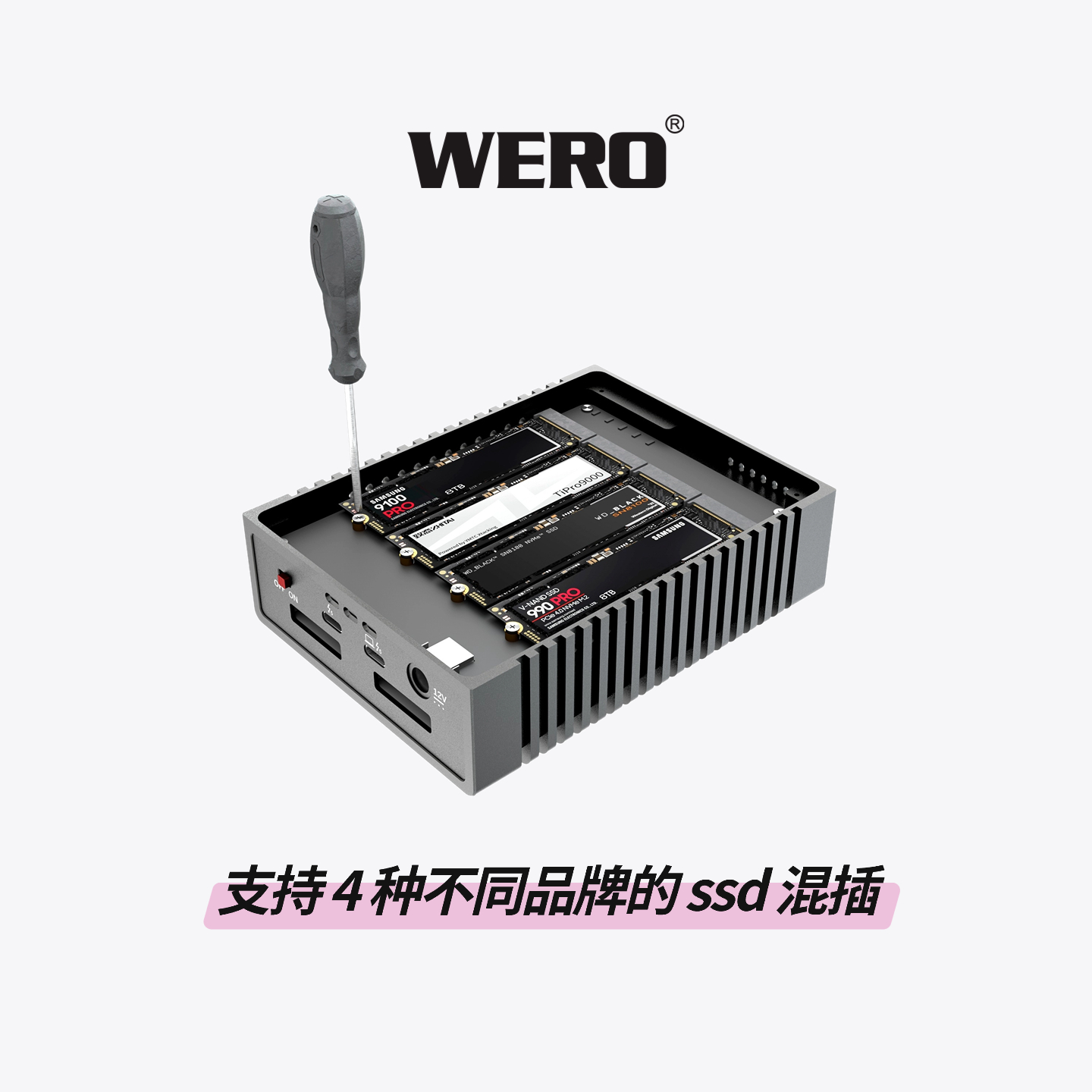

SSD Specification: 2280 Form Factor M.2 NVMe M-key SSD (⚠️ Heatsink not supported)
(Note: "Heatsink" refers to the cooling accessory often attached to SSDs; using an SSD with a heatsink may prevent proper installation in the enclosure.)
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 supported (⚠️ The actual speed of PCIe 5.0 SSDs is limited by the Thunderbolt 5 port bandwidth)

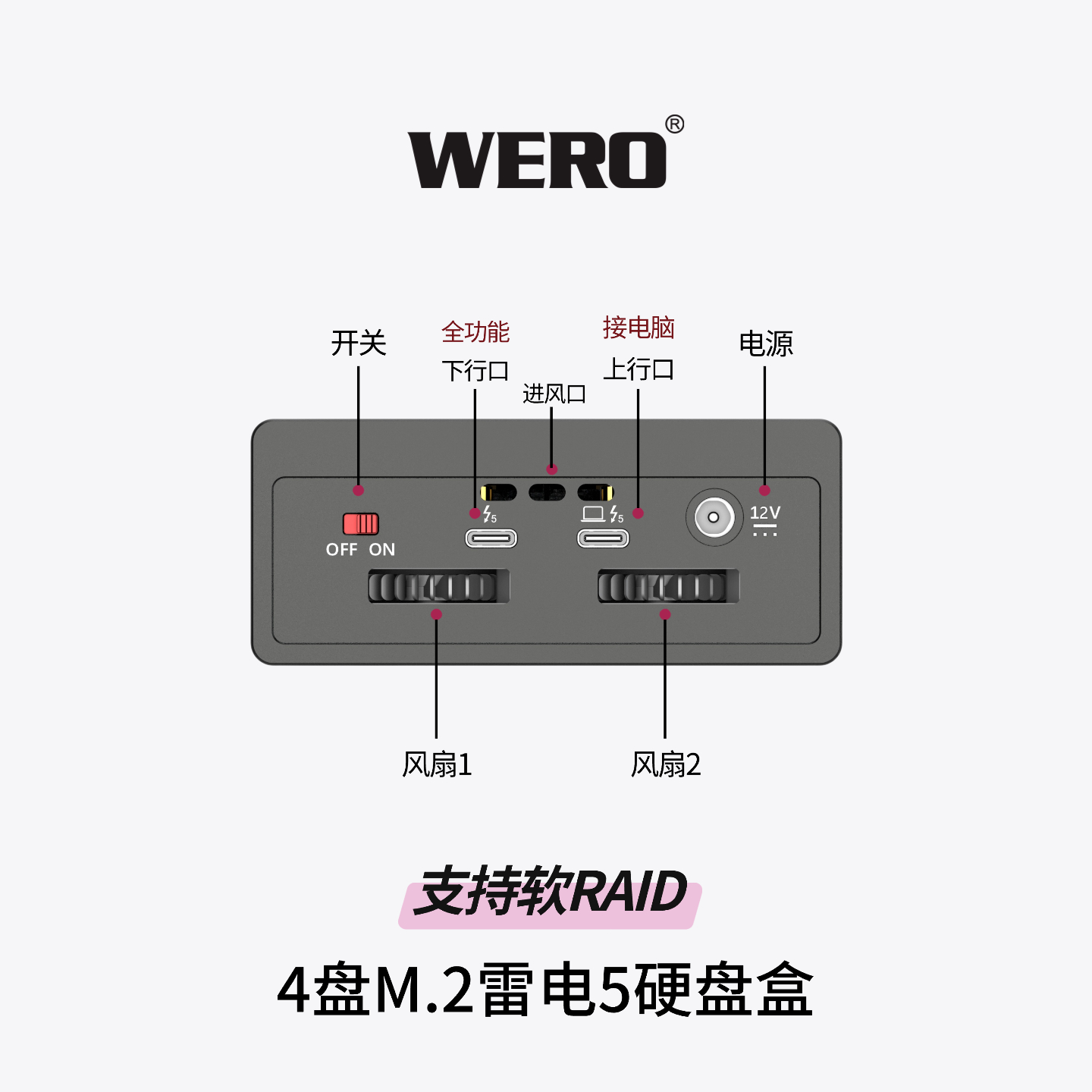

Thunderbolt Upstream Port: Supports PD 15W reverse charging;
Thunderbolt Downstream Port: Full-function Thunderbolt 5 port, supports connection to SSD enclosures, docks, monitors, mobile phones, etc.; supports PD 15W charging
Transfer Speed: 80/40 Gbps
Cable: WERO Thunderbolt 5 cable (Intel officially certified). Do not replace it with a non-officially certified cable (⚠️ Note: All cables claiming to have "certified chips" are fake certified cables)! This will affect stability.

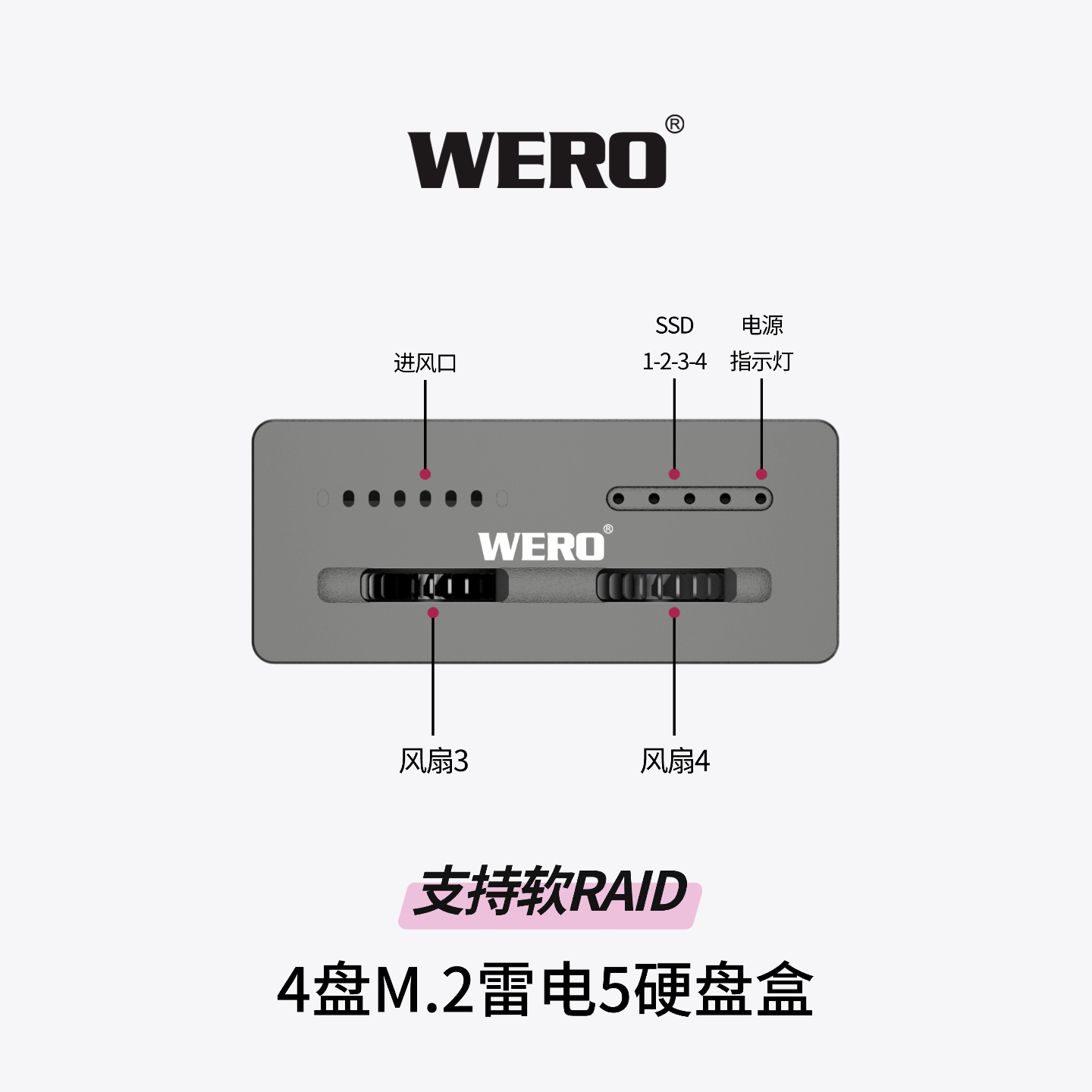

Active Cooling: 4 temperature-controlled fans (4 independent fans for separate zones). During power-on self-test (POST), the fans run at full speed for 5-10 seconds and then stop. The fans remain off when the temperature is below 45°C, start running at low speed when the temperature reaches 45°C, and run at full speed when the temperature exceeds 60°C. Stepless speed regulation is implemented based on temperature changes in between!
Dimensions: 136.6 mm (Length) × 103.6 mm (Width) × 43.6 mm (Height)
Weight: 747 ± 5 grams (including cable)
Power Supply Method: Independent power supply (12V 5A or 6A). ⚠️ Do not use power supplies with voltage exceeding 12V or PD variable voltage power supplies!
Supported Systems: macOS (Version 15.2 or later), Windows 11 (Version 24H2 or later)
Speed Testing Tools: For Apple Mac, use AmorphousDiskMark; for Windows 10/11, use CrystalDiskMark 8.01.
Compatibility & Speed on macOS
Thunderbolt 5: Up to 7000 MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Compatibility & Speed on Windows
Thunderbolt 5: Up to 6155 MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800 MB/s (3800 megabytes per second)
⚠️ Important Notes
1.Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
2.For Windows 10 Thunderbolt 4 PCs, update to Windows 11 24H2 or later for optimal stability.
3.For Windows PCs with Thunderbolt 3 JHL7540 controller (incompatible with this product): Most issues are fixable via official Thunderbolt firmware updates; a few devices with no updates remain incompatible (no solutions).
4.Most Windows PCs with Thunderbolt 3 JHL6540 controller don’t support this product—launched nearly 10 years ago, official firmware updates are unavailable for most.
