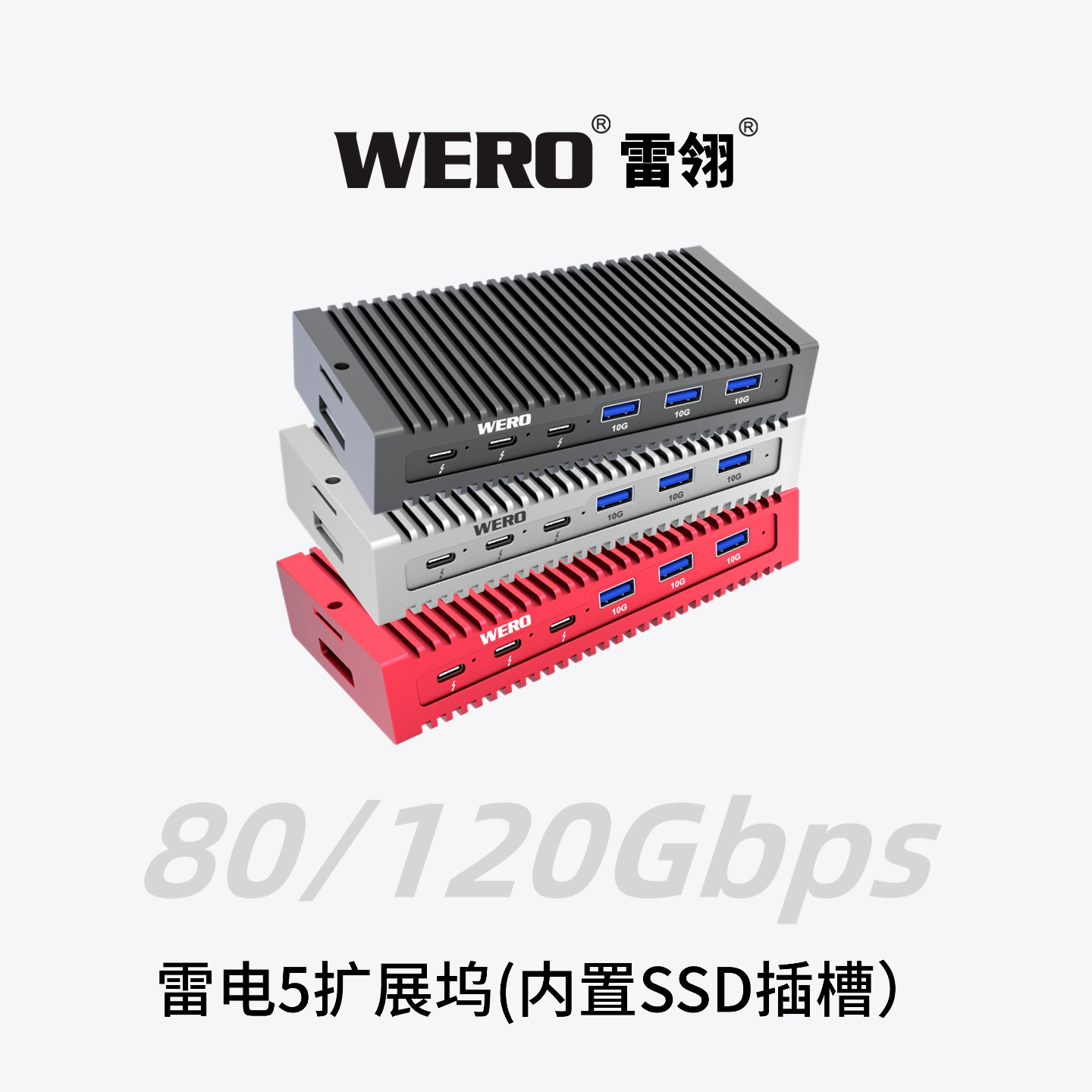

WERO雷电5  1M2-DOCK扩展坞Thunderbolt 5 1M2-DOCK Docking Station

规格参数

名称：雷电5  1M2-DOCK扩展坞
型号：TBT5-1M2-dock
主控：JHL9480-B2
硬盘规格：2280 规格的M.2 NVMe M.key SSD(⚠️不要带马甲）
硬盘传输协议：PCIe5.0/4.0/3.0支持（⚠️5.0的盘实际速率受限于雷电5端口带宽）
USB-C接口：速率80/120Gbps

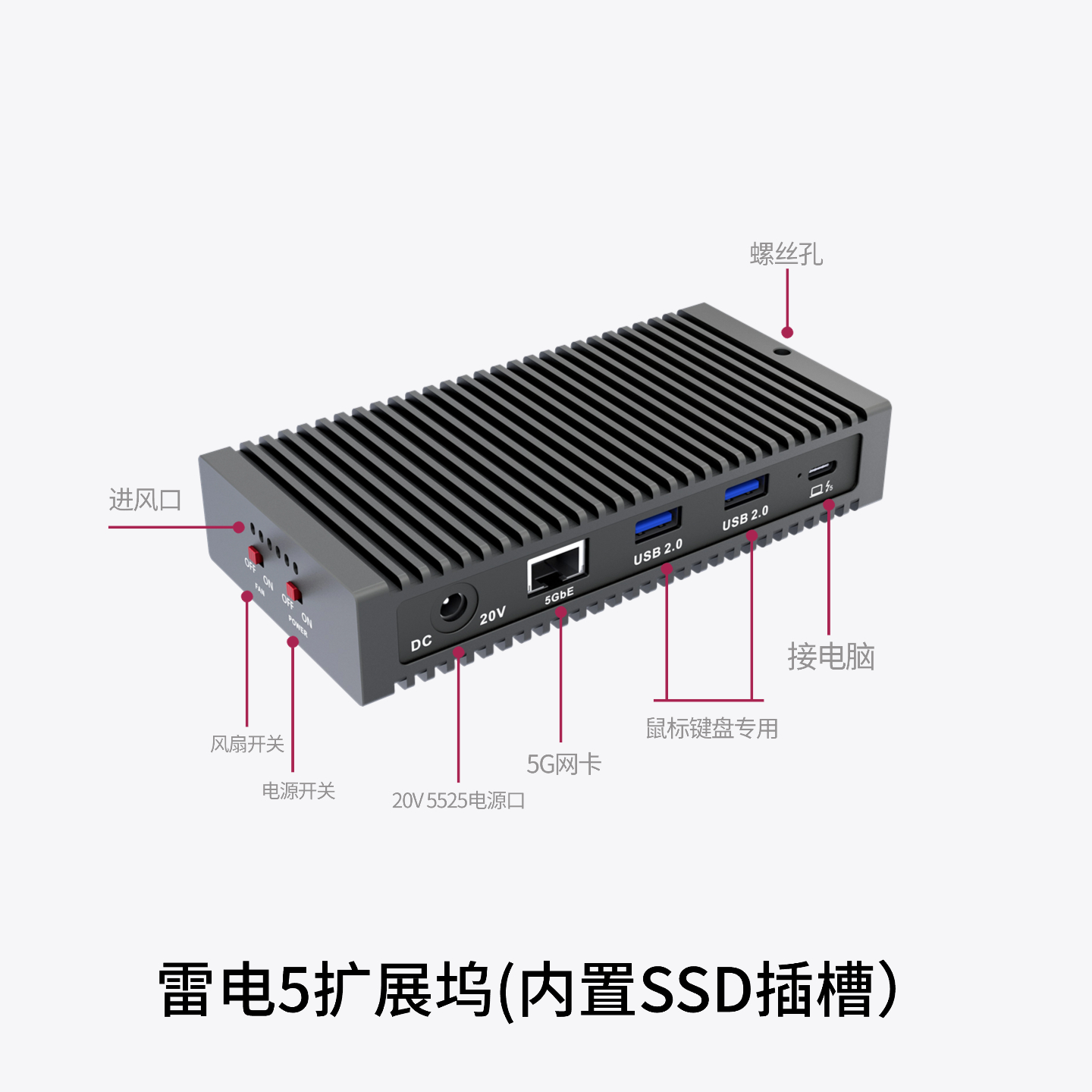

*上行雷电口：端口1，速率80/120Gbps, PD 140W

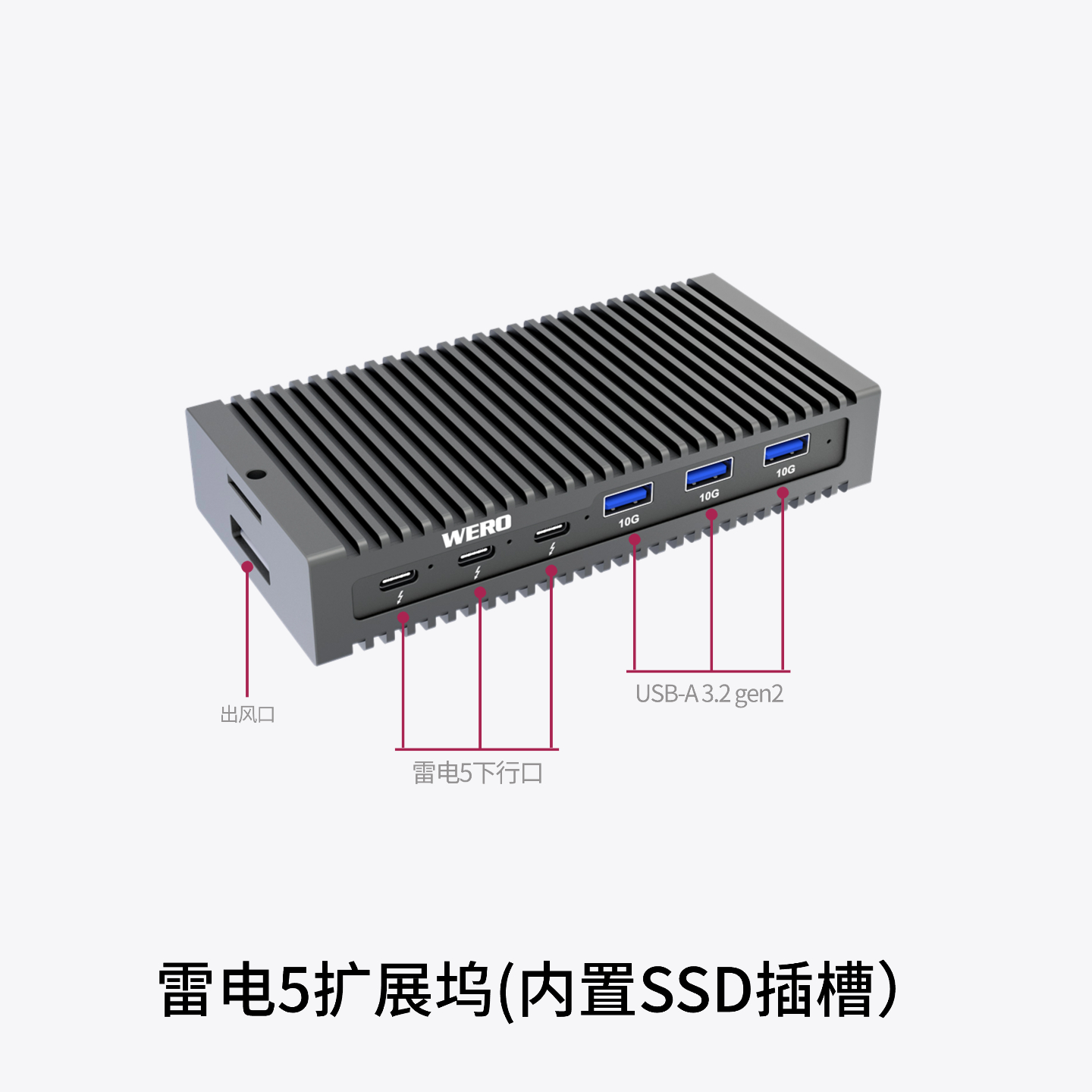

*下行雷电口：3个，图中标志2/3/4端口，速率80/120Gbps，PD分别为30W/15W/15W
    可接显示器（⚠️苹果最多2个，Win最多3个）、硬盘盒、扩展坞、手机、读卡器等
USB-A接口：
 USB-A 2.0 端口 2个，键盘鼠标专用，避开鼠标与USB3.0同频干扰！  USB-A 3.2 GEN2 10Gbps端口：3个，PD 7.5W
网卡接口：5GbE，走的USB协议，不占用PCIe通道,实测速度媲美10G网卡
数据线：WERO雷电5线，intel官方认证线，请勿更换成非官方认证线
          （⚠️注意：号称认证芯片的都是假认证线）！影响稳定性。

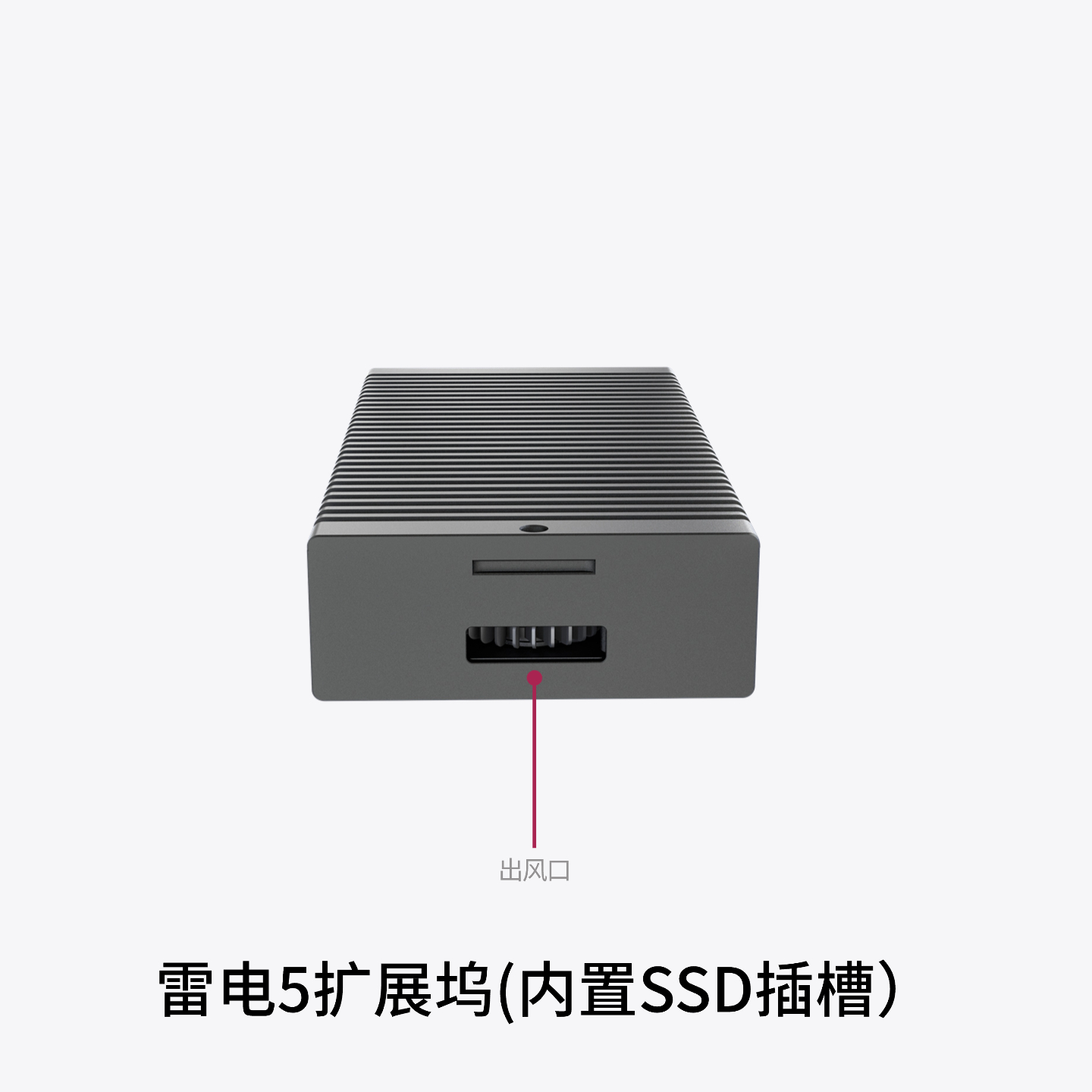

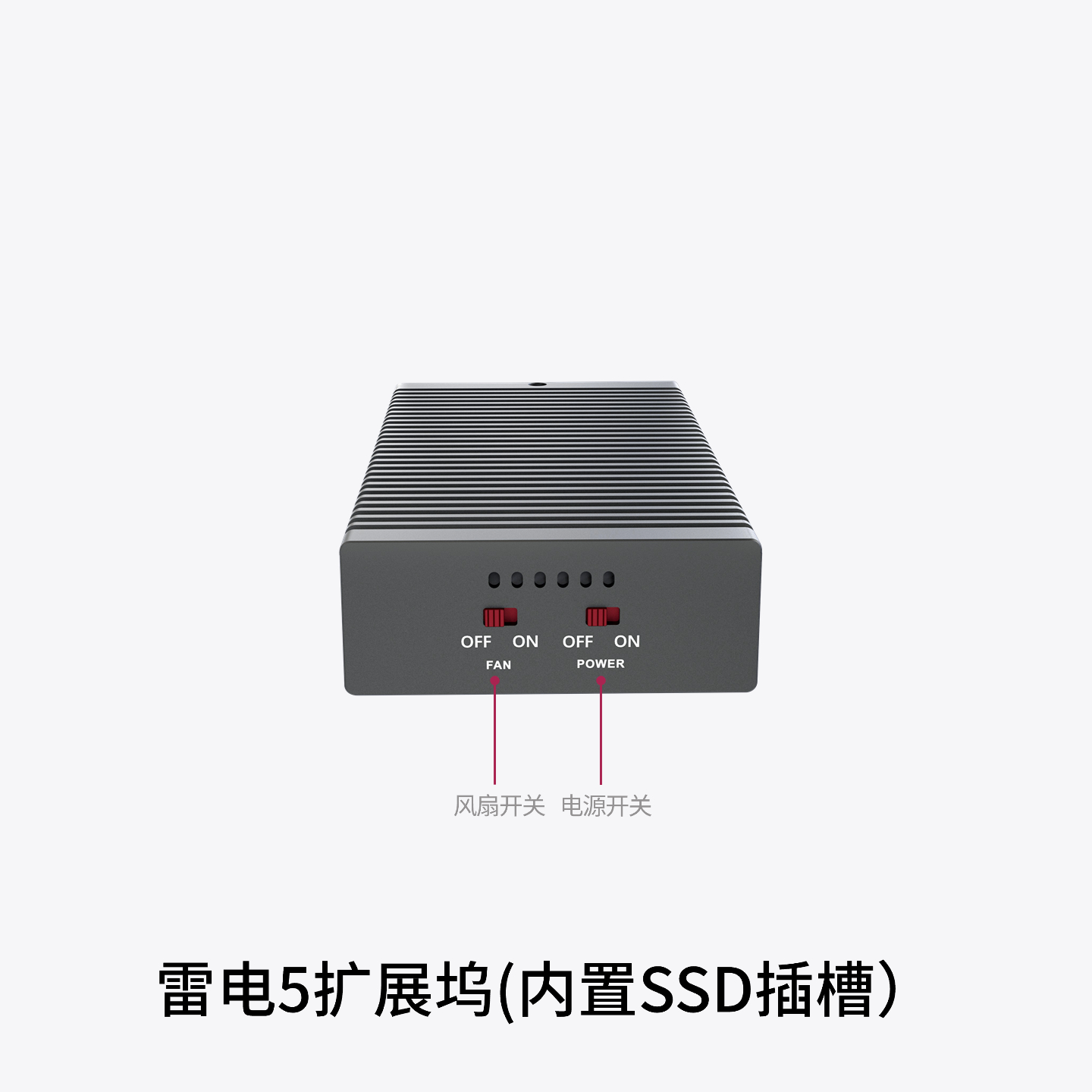

主动散热：温控风扇，通电自检满速转 5-10s后停止，45度以下不转，45度开始低速转，60度后全速转，中间随温度变化无级变速,风扇有独立开关，不需要的时候可关闭！
尺寸：150毫米（长）× 73 毫米（宽）× 29毫米（高）
重量：469±3 克 (含线）
供电方式：独立电源，氮化镓20V 9A，⚠️必须接电源，请使用wero原装电源！
系统支持：MacOS（15.2或更高版本）、Windows 11（24H2 或更高版本）
速度测试工具：苹果Mac使用AmorphousDiskMark测试、Win10/11使用CrystalDiskMark 8.01测试，blackmagic disk speed test因测试标准不同，数值会低一些，望知晓！以上为顺序读取max值，其他数值可找客服索取.
内置 SSD在Mac电脑上的速率：
雷电 5：最高可达 7000MB/s（每秒 7000 兆字节）
雷电 4：最高可达 3800MB/s（每秒 3800 兆字节）
雷电 3：最高可达 2800MB/s（每秒 2800 兆字节）
内置 SSD在Windows电脑上的速率：
雷电 5：最高可达 6155MB/s（每秒 6155 兆字节）
雷电 4/USB4：最高可达 3800MB/s（每秒 3800 兆字节）
⚠️ 重要说明：
1、雷电5功能需在 Windows 11 24H2 或更高版本系统下才能稳定运行。
2、Win10的雷电4电脑，请更新到Windows 11 24H2或更高版本以获取最佳稳定性！
3、Windows电脑雷电3主控是JHL7540不能使用本产品的电脑多数可以通过到官方网站下载Thunerbolt固件更新来解决兼容问题，少数未提供固件更新的无解。
4、Windows电脑雷电3主控是JHL6540不能使用本产品的电脑大多数不支持，因为上线近 10 年了，多数电脑官方已无法提供固件更新
5、部分手机和平板可以适用扩展功能，但不能使用内置 SSD，而且扩展性能受限于手机或者平板本身性能

SPECIFICATION

Product Name: Thunderbolt 5 1M2-DOCK Docking Station
Model: TBT5-1M2-dock
Main Controller: JHL9480-B2
SSD Specification: 2280 Form Factor M.2 NVMe M-key SSD (⚠️ Heatsink not supported)
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 supported (⚠️ The actual speed of PCIe 5.0 SSDs is limited by the Thunderbolt 5 port bandwidth)
USB-C Port: Speed: 80/120 Gbps
Thunderbolt Upstream Port: Port 1, Speed: 80/120 Gbps, PD 140W.
Thunderbolt Downstream Ports: 3 ports (marked as Ports 2/3/4 in the diagram), Speed: 80/120 Gbps, PD: 30W/15W/15W respectively.Compatible with monitors (⚠️ Up to 2 monitors for Apple devices, up to 3 monitors for Windows devices), SSD enclosures, docking stations, mobile phones, card readers, etc.
USB-A Ports:
2 x USB-A 2.0 Ports: Dedicated for keyboards and mice, avoiding frequency interference between mice and USB 3.0 devices!
3 x USB-A 3.2 GEN2 10Gbps Ports: PD 7.5W
Ethernet Port: 5GbE (operates via USB protocol, no PCIe lane occupation). Tested speed is comparable to 10G Ethernet cards.
Cable: WERO Thunderbolt 5 cable (Intel officially certified). Do not replace it with a non-officially certified cable (⚠️ Note: All cables claiming to have "certified chips" are fake certified cables)! This will affect stability.
Active Cooling: Temperature-controlled fan. During power-on self-test (POST), the fan runs at full speed for 5-10 seconds and then stops. It remains off when the temperature is below 45°C, starts running at low speed when the temperature reaches 45°C, and runs at full speed when the temperature exceeds 60°C. Stepless speed regulation is implemented based on temperature changes in between. The fan is equipped with an independent switch and can be turned off when not needed!
Dimensions: 150 mm (Length) × 73 mm (Width) × 29 mm (Height)
Weight: 469 ± 3 grams (including cable)
Power Supply Method: Independent power supply (GaN 20V 9A). ⚠️ Power connection is mandatory; please use the original WERO power supply!
Supported Systems: macOS (Version 15.2 or later), Windows 11 (Version 24H2 or later)
Speed Testing Tools: For Apple Mac, use AmorphousDiskMark; for Windows 10/11, use CrystalDiskMark 8.01. Note that Blackmagic Disk Speed Test will show lower values due to different testing standards. Please be advised!
Speed of Built-in SSD on  Mac Computers
Thunderbolt 5: Up to 7000 MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Speed of Built-in SSD on Windows Computers
Thunderbolt 5: Up to 6155 MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800 MB/s (3800 megabytes per second)
⚠️ Important Notes
1.Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
2.For Windows 10 Thunderbolt 4 PCs, update to Windows 11 24H2 or later for optimal stability.
3.For Windows PCs with Thunderbolt 3 JHL7540 controller (incompatible with this product): Most issues are fixable via official Thunderbolt firmware updates; a few devices with no updates remain incompatible (no solutions).
4.Most Windows PCs with Thunderbolt 3 JHL6540 controller don’t support this product—launched nearly 10 years ago, official firmware updates are unavailable for most.
5.Some phones and tablets support the expansion functions, but not the internal SSD—expansion performance is also limited by the device's own capabilities.
