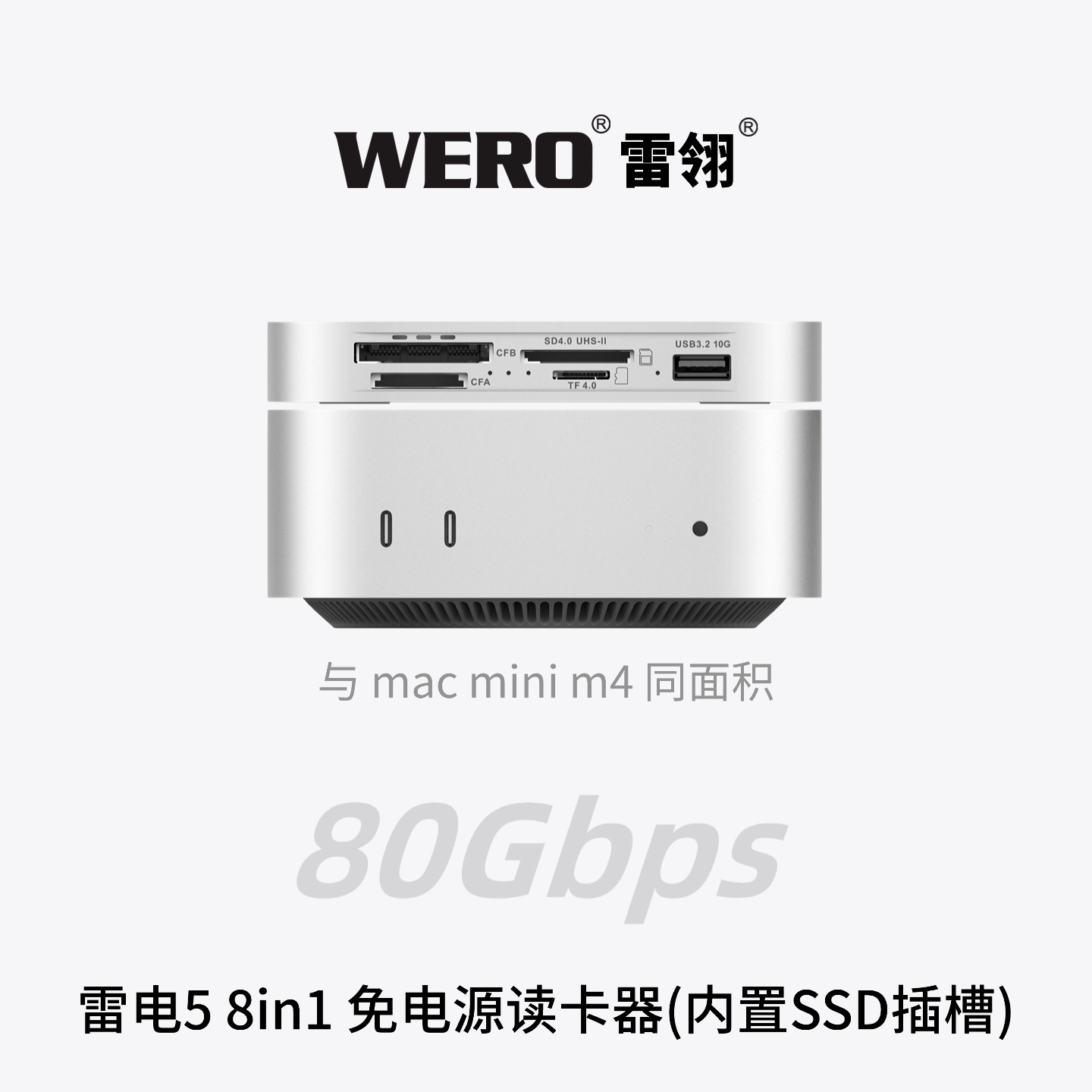

规格参数
产品名称：雷电 5 8in1读卡器硬盘盒
型号：TBT5-SSD-8in1-Readerr
主控：JHL9480+3 个JMS583+GL3231S+VL822
硬盘接口：2280 M.2 NVMe M.key SSD(⚠️不要买带马甲的 SSD)
硬盘传输协议：PCIe5.0/4.0/3.0支持⚠️5.0/4.0的盘实际速率受限于雷电5端口带宽
输入接口：USB-C 接口
传输速度：80/40/10/5/0.48Gbps

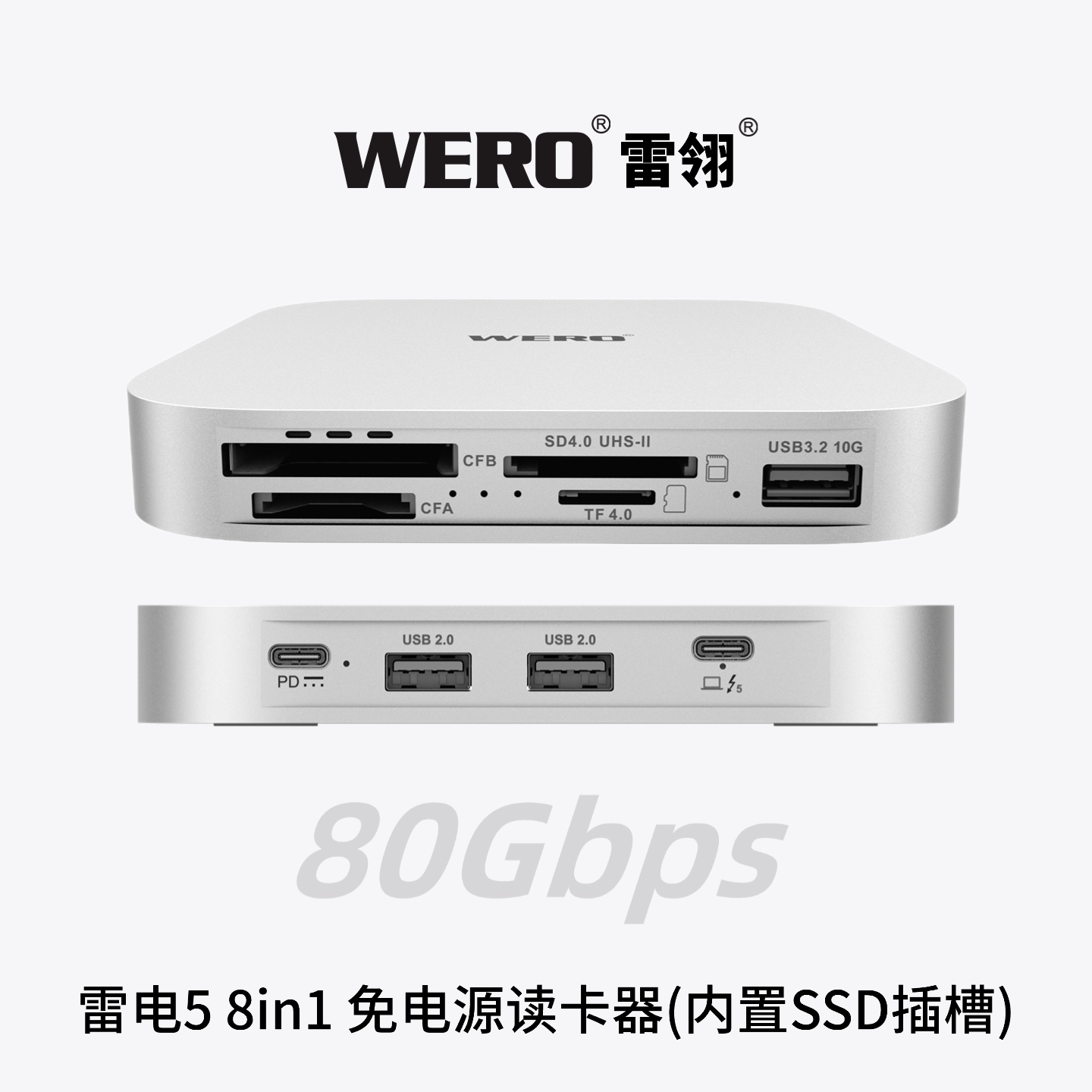

USB-A接口：
USB-A 2.0 端口 2个，键盘鼠标专用，避开鼠标与USB3.0同频干扰！ USB-A 3.2 GEN2 10Gbps端口：1个，PD 7.5W
数据线：WERO雷电5线，intel官方认证线，请勿更换成非官方认证线
（⚠️注意：号称认证芯片的都是假认证线）！影响稳定性。

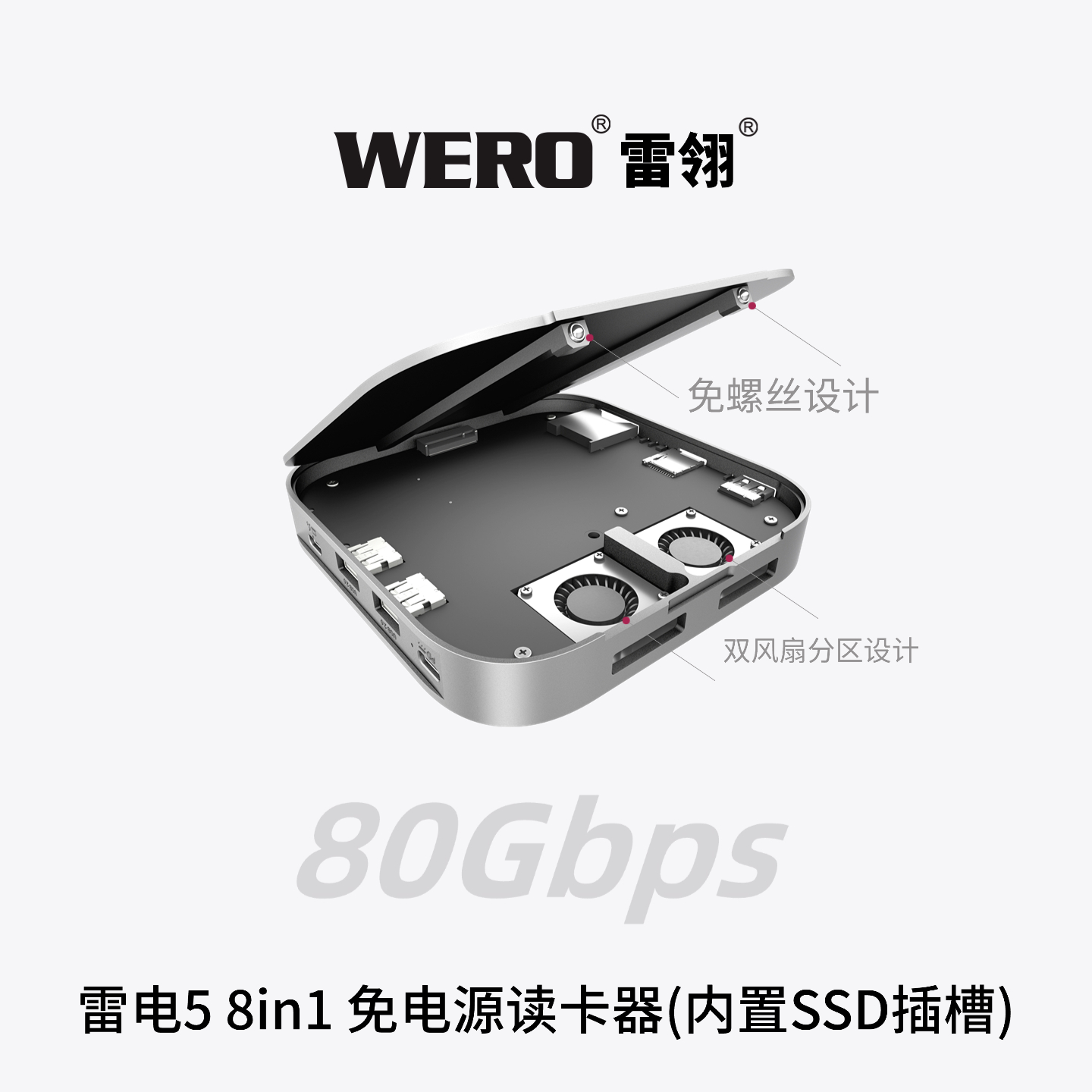

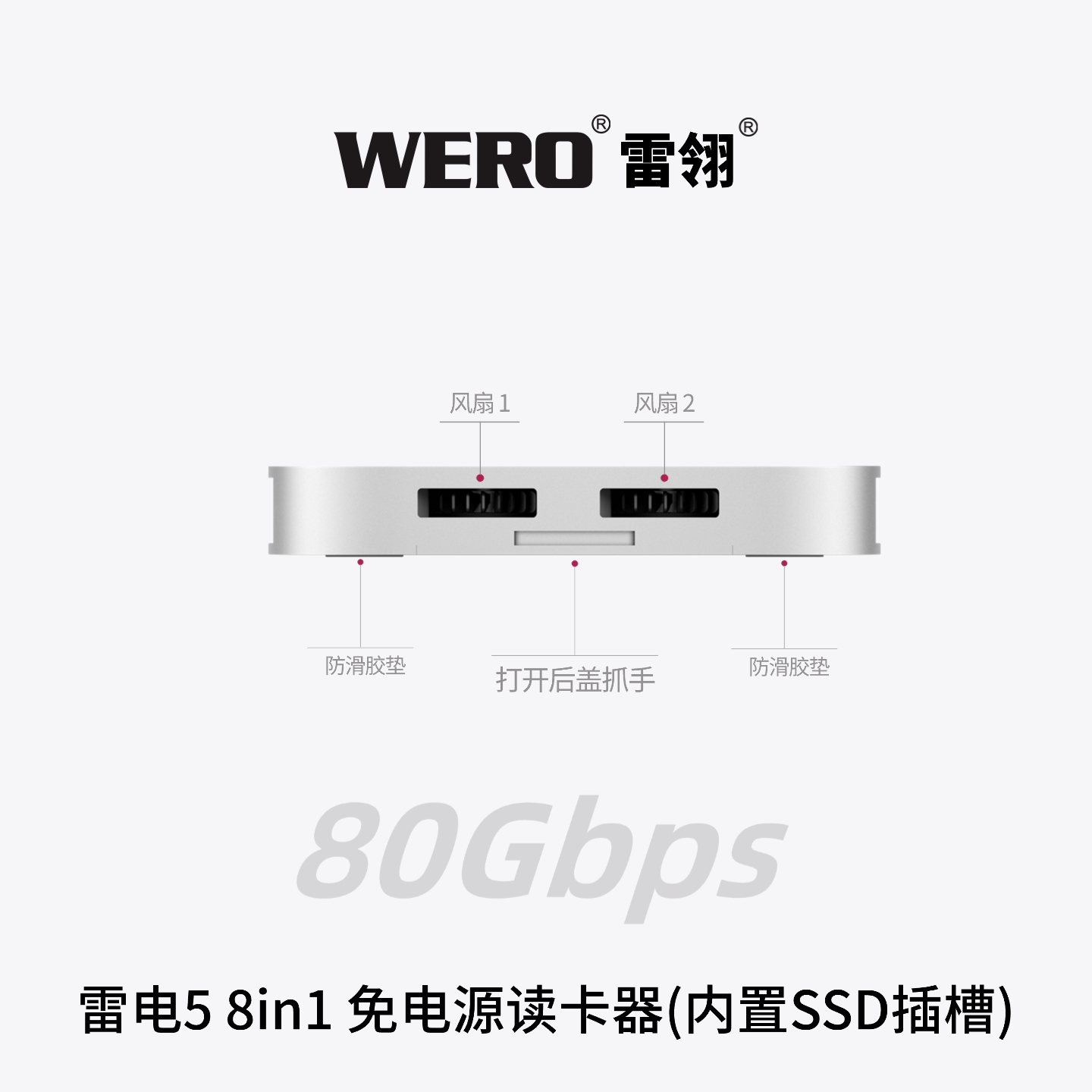

主动散热：温控风扇，通电自检满速转 5-10s后停止，45度以下不转，45度开始低速转，60度后全速转，中间随温度变化无级变速。
尺寸：127毫米（长）× 127 毫米（宽）×18.5毫米（高）
重量：379克
供电方式：无需独立电源（总线供电）+ 支持辅助供电
（注：总线供电指通过 USB-C 接口从连接设备（如电脑）获取电力；辅助供电则是额外提供的供电方式，用于满足高负载运行需求）
PD 辅助供电支持：5V@3A、9V@2A、12V@1.5A、15V@1.2A、20V@1A
（注：PD 即 Power Delivery，指USB供电标准，可提供多种电压电流组合以适配不同设备需求）
系统支持：MacOS（15.2或更高版本）、Windows 11（24H2 或更高版本）（ 不支持Windows8/7/XP 等）、 iOS、Android 等
速度测试工具：苹果Mac使用AmorphousDiskMark测试、Win10/11使用CrystalDiskMark 8.01测试，blackmagic disk speed test因测试标准不同，数值会低一些，望知晓！以上为顺序读取max值，其他数值可找客服索取.
CF-Express B：10Gbps max speed：1000M/s CF-Express A：10Gbps 由于A卡本身速度限制速度800M/s左右
SD 4.0：USB3.1 GEN1 由于SD卡本身速度限制速度max speed 300M/s TF 4.0：USB3.1 GEN1 由于TF卡本身速度限制速度max speed 280M/s
内置 SSD在Mac电脑上的速率：
雷电 5：可达 7000MB/s（每秒 7000 兆字节）
雷电 4：可达 3800MB/s（每秒 3800 兆字节）
USB 4：可达 3800MB/s（每秒 3800 兆字节）
雷电 3：可达 2800MB/s（每秒 2800 兆字节）
内置 SSD在Windows电脑上的速率：
雷电 5：可达 6155MB/s（每秒 6155 兆字节）
雷电 4：可达 3800MB/s（每秒 3800 兆字节）
USB 4：可达 3800MB/s（每秒 3800 兆字节）
雷电 3：可达 2800MB/s（每秒 3800 兆字节）
USB3.2 GEN2X2 20Gbps ：2000MB/s
USB3.2 GEN2 10Gbps: 1000MB/s
USB3.2 GEN1 5Gbps: 450MB/s
USB2.0 480Mbps: 38MB/s
⚠️ 重要说明：
1、雷电5功能需在 Windows 11 24H2 或更高版本系统下才能稳定运行。
2、Win10的雷电4 电脑，请更新到 Windows 11 24H2或更高版本，以获取最佳稳定性！
3、Windows电脑雷电3主控是JHL7540不能使用本产品的电脑多数可以通过到官方网站下载Thunerbolt固件更新来解决兼容问题，少数未提供固件更新的无解。
4、Windows电脑雷电3主控是JHL6540不能使用本产品的电脑大多数不支持，因为上线近 10 年了，多数电脑官方已无法提供固件更新
SPECIFICATION
Product Name: Thunderbolt 5 8-in-1 Card Reader & SSD Enclosure
Model: TBT5-SSD-8in1-Readerr
Main Controller: JHL9480 + 3 x JMS583 + GL3231S + VL822
SSD Interface: 2280 M.2 NVMe M-key SSD (⚠️Do NOT purchase SSDs with heat spreaders)
SSD Transfer Protocol: Supports PCIe 5.0/4.0/3.0 ⚠️The actual speed of PCIe 5.0/4.0 SSDs is limited by the Thunderbolt 5 port bandwidth
Input Interface: USB-C Port
Transfer Speed: 80/40/10/5/0.48 Gbps
USB-A Ports:
2 x USB-A 2.0 Ports (For Mice & Keyboards Only) – Avoids frequency interference between mice and USB 3.0 devices!
1 x USB-A 3.2 Gen 2 10Gbps Port, with 7.5W PD (Power Delivery)
Cable: WERO Thunderbolt 5 Cable (Intel Officially Certified). Do NOT replace with non-officially certified cables (⚠️Note: Cables claiming to have "certification chips" are all counterfeit certified cables!) – This will affect stability.
Active Cooling: Temperature-controlled fan. Runs at full speed for 5-10 seconds during power-on self-test (POST) then stops. Stays off when the temperature is below 45°C; starts low-speed operation at 45°C; switches to full speed when the temperature exceeds 60°C. Stepless speed adjustment based on temperature fluctuations in between.
Dimensions: 127mm (Length) × 127mm (Width) × 18.5mm (Height)
Weight: 379g
Power Supply: Bus-powered (no independent power supply required) + Supports auxiliary power supply
(Note: Bus power is drawn from the connected device (e.g., computer) via the USB-C interface; auxiliary power supply is an additional power option to meet high-load operation requirements)
PD Auxiliary Power Supply Support: 5V@3A, 9V@2A, 12V@1.5A, 15V@1.2A, 20V@1A
(Note: PD (Power Delivery) is a USB power supply standard that provides multiple voltage and current combinations to adapt to different device requirements)
Supported Operating Systems: macOS (15.2 or later), Windows 11 (24H2 or later) (Windows 8/7/XP, etc., are NOT supported), iOS, Android, etc.
Speed Testing Tools: Use AmorphousDiskMark for Apple Mac; use CrystalDiskMark 8.01 for Windows 10/11. Note that Blackmagic Disk Speed Test will show lower values due to different testing standards! The above values refer to the maximum sequential read speed; other values are available upon request from customer service.
CF-Express B: 10 Gbps *Max Speed: 1000 MB/s
CF-Express A: 10 Gbps *Speed capped at approximately 800 MB/s due to inherent speed limitations of CF-Express A cards
SD 4.0: USB 3.1 Gen 1 *Max speed capped at 300 MB/s due to inherent speed limitations of SD cards
TF 4.0: USB 3.1 Gen 1 *Max speed capped at 280 MB/s due to inherent speed limitations of TF cards
Internal SSD Speed on Mac:
Thunderbolt 5: Up to 7000 MB/s (7000 Megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 Megabytes per second)
USB4: Up to 3800 MB/s (3800 Megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 Megabytes per second)
Internal SSD Speed on Windows:
Thunderbolt 5: Up to 6155 MB/s (6155 Megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 Megabytes per second)
USB4: Up to 3800 MB/s (3800 Megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 Megabytes per second)
USB 3.2 Gen 2x2 20Gbps: 2000 MB/s
USB 3.2 Gen 2 10Gbps: 1000 MB/s
USB 3.2 Gen 1 5Gbps: 450 MB/s
USB 2.0 480 Mbps: 38 MB/s
⚠️ Important Notes:
1.Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
2.For Windows 10 Thunderbolt 4 PCs, update to Windows 11 24H2 or later for optimal stability.
3.For Windows PCs with Thunderbolt 3 JHL7540 controller (incompatible with this product): Most issues are fixable via official Thunderbolt firmware updates; a few devices with no updates remain incompatible (no solutions).
4.Most Windows PCs with Thunderbolt 3 JHL6540 controller don’t support this product—launched nearly 10 years ago, official firmware updates are unavailable for most.
